For many industrial brand owners and procurement managers, the technical nuances of gear selection often remain a knowledge blind spot that surfaces only when a system fails or operates inefficiently. When sourcing gear shafts, many buyers focus solely on dimensions and material. They overlook the critical dynamics between single and double helical designs. This oversight can lead to excessive axial load on bearings or unexpected vibration. It ultimately drives up maintenance costs.
YIZHI MACHINERY bridges this knowledge gap by providing solution-based manufacturing.As a specialized enterprise established in 2016, YIZHI MACHINERY focuses on the customized design and precision production of gear transmission components. We have earned global recognition as a trusted partner for renowned enterprises like Viktor Tsurkan and TechDrive Solutions. We deliver end-to-end gear solutions tailored to the most stringent industrial requirements.
Understanding the Fundamentals of Helical Transmission
What is a high-precision industrial helical gear?
In modern engineering, what is a high-precision industrial helical gear? It is a gear where the tooth traces are inclined at a specific angle relative to the gear axis. Unlike standard spur gears, helical teeth engage gradually. This allows for a smoother meshing process with significantly lower impact and noise. High-precision single helical gears for industrial machinery are typically manufactured using advanced gear grinding and CNC techniques. These methods help achieve micron-level tolerances. They often reach Grade 5 or 6 according to ISO 1328 standards.
The Core Difference: Single vs. Double Helical
To optimize your equipment, you must understand the difference between single and double helical designs. The primary difference between single and double helices lies in the management of axial thrust. A single helical gear generates a one-way axial force during transmission. This requires the use of matched thrust bearings. In contrast, a double helical gear consists of two helical profiles with opposite helix directions. It effectively self-balances the axial thrust and eliminates the need for specialized thrust bearings.

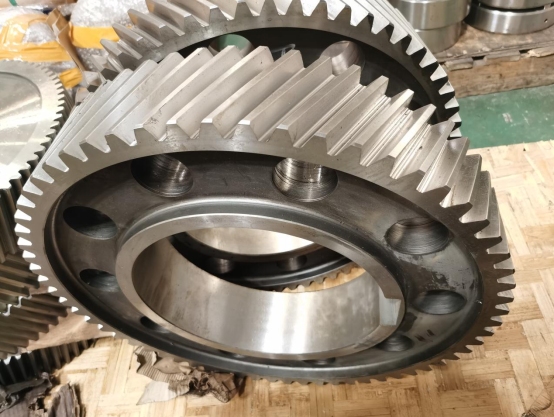

Single Helical Gears: Efficiency and Precision
How single helical gears improve efficiency in mechanical systems
A common question for OEM projects is: How do single helical gears improve efficiency in mechanical systems? Due to their inclined tooth profile, more teeth are in mesh at any given time compared to spur gears. This offers a 30%-50% higher load-carrying capacity. The increased contact ratio ensures far superior meshing smoothness. It makes them ideal for high-speed working conditions where transmission efficiency can reach 96%-99%.
YIZHI MACHINERY specializes in high-precision single helical gears for industrial machinery. We utilize materials like 40CrNiMoA and induction hardening. These choices ensure exceptional wear resistance. The components prove essential for machine tool spindles, blowers, and precision transmission devices where smoothness is paramount.
Why the difference between single and double helical gears in industrial gears matters
Understanding the difference between single and double helical gears in industrial applications is vital for cost-efficiency. While single helical gears are easier to manufacture and offer high precision, the requirement for thrust bearings can complicate the overall assembly. If your application demands high speeds but cannot accommodate the additional hardware for axial loads, transitioning to a double helical solution is often the smarter engineering choice.

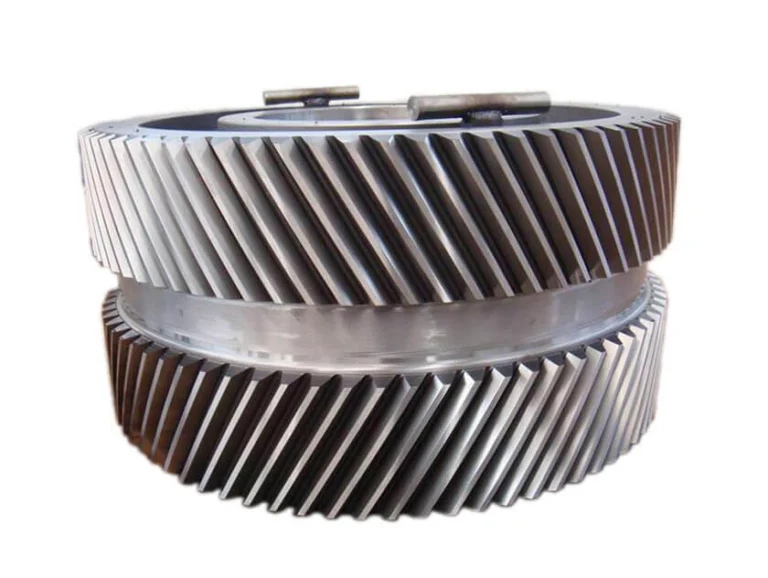

Double Helical Gears: Heavy-Duty Performance and Stability
What makes a double helical gear suitable for heavy-duty applications
When considering what makes a double helical gear suitable for heavy-duty applications, the answer lies in its structural stability and load distribution. By canceling out internal axial forces, a high-performance double helical gear with low vibration provides unmatched reliability in extreme environments. These gears suit medium-high speed and medium-heavy load conditions particularly well. Examples include marine propulsion systems and large-scale reducers.
High Performance with Low Vibration
YIZHI MACHINERY produces high-performance double helical gears with low vibration by employing precision milling and quenching treatments. Our double helical gears support modules up to 20 and helix angles up to 45°. They ensure handling of the torque requirements in the most demanding industrial sectors. The self-balancing nature of these gears reduces the stress on the entire gearbox housing. It extends the service life of the machinery.
Application Success: Validating Manufacturing Power
Our reputation as a leading China custom helical gear supplier for OEM is built on proven results. By discussing real application cases, we demonstrate our ability to solve complex transmission problems.
- TechDrive Solutions: This industrial machinery manufacturer transitioned to our precision gears to improve equipment operating efficiency. Over three years of cooperation, our gears have demonstrated exceptional durability and performance, even under extreme operating conditions.
- Viktor Tsurkan: As a globally renowned manufacturer with extremely high requirements, they rely on YIZHI MACHINERY for customized gear solutions that match specialized application needs. This ensures micrometre-level precision in every component.
- Precision Motion Systems (PMS): In the field of automation, PMS utilizes our high-performance gears to improve system reliability. Our technical expertise helped them reduce operational downtime and significantly increase production capacity.
How to find a reliable custom helical gear supplier for OEM projects
Determining how to find a reliable custom helical gear supplier for OEM projects requires looking beyond the price. A reliable partner must offer several key strengths. It must deliver micron-level precision. This means the capability to reach ISO Grade 5 or 6 through CNC gear grinding. It must also ensure material integrity through the use of high-grade alloys like 20CrMnTi, 42CrMo, and 17CrNiMo6. Comprehensive quality control forms another essential part. This involves rigorous testing of tooth profile, pitch, and surface roughness. OEM customization completes the picture. It follows a closed-loop process from demand communication and design drawings to final heat treatment and inspection.
YIZHI MACHINERY stands out as a premier China custom helical gear supplier for OEM. We offer a 24-hour consultation response and full-cycle technical support. Our production facility is equipped with advanced hobbing, grinding, and machining centers. These tools allow us to handle complex, high-difficulty orders.
Drive Your Industry with YIZHI MACHINERY
Whether you require the cost-effective efficiency of high precision single helical gears for industrial machinery or the robust stability of a high-performance double helical gear with low vibration, YIZHI MACHINERY provides the technical excellence your brand deserves. Do not let a knowledge blind spot in gear selection compromise your equipment’s performance.
Contact YIZHI MACHINERY today to receive a customized quote and optimize your gear transmission system.
- Email: [email protected]
- WhatsApp/WeChat: +8613918048359
- Website: Visit us at our Youxi Industrial Zone facility in Luoyang, China.
FAQ
Q: What is the highest grade of helical gears that YIZHI MACHINERY can make?
A: Our gears have precision of Grade 6~7 according to ISO 1328, while high precision gears can reach Grade 5 through high precision grinding.
Q: What kind of material do you recommend for heavy duty double helical gears?
A: Our recommendation is high strength alloy steel such as 20CrMnTi, 42CrMo, and 20CrNiMo in order to have maximum hardness and wear resistance.
Q: Can you process small volume OEM orders?
A: Our processing technology is capable of meeting both requirements of single piece custom processing and mass production.
Q: Do single helical gears need special maintenance?
A: The requirement for single helical gears is to use matching thrust bearings to cope with the axial load. Lubrication of the bearings is necessary.
Q: How long is the lead time of customized gear processing?
A: It varies according to the complexity of your customized gears, but we will give you the definite delivery schedule after demand confirmation.
