In the field of heavy-duty industrial equipment, one mechanical breakdown can halt a whole production line and cause expensive delays. The connection between the shaft and its matching part often fails in ways that people ignore. If splines are selected badly or made with errors, problems like shaking, sliding, and early damage can cause major system failures. For designers and buyers, the task goes beyond picking any shaft. They need a carefully made option that handles tough working conditions.

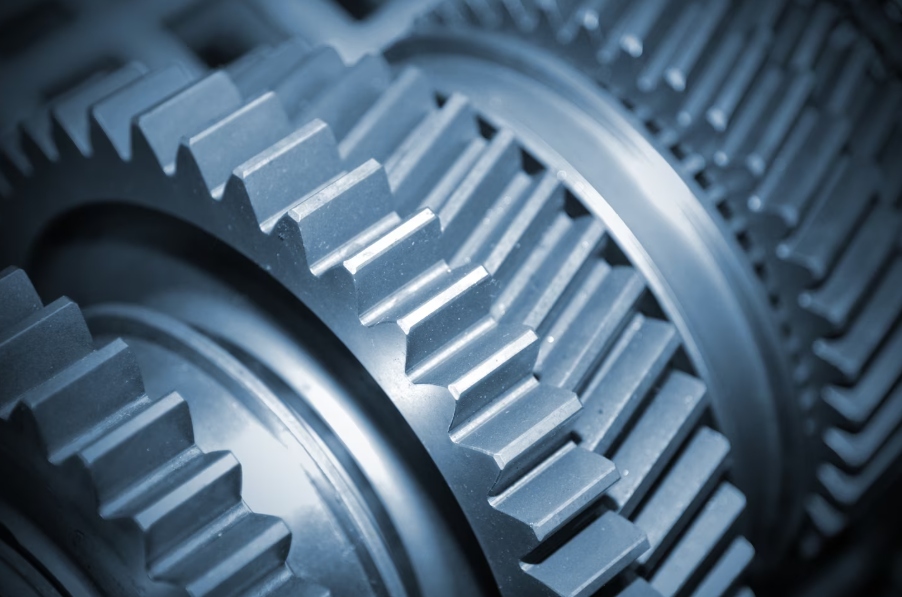

At YIZHI MACHINERY, we know your power transfer setup is as tough as its weakest part. We started in 2016. Since then, our firm has grown into a top expert in creating and building custom gear transfer parts. With our focus on “practical sales,” we supply the accuracy and toughness needed to fix your hardest mechanical problems.
Understanding Splines in Power Transmission
Splines consist of straight grooves or ridges cut into a shaft. These fit with a matching inner shape in the connected piece. Splines differ from basic key slots. They send a much greater turning force while keeping the exact position. Picking the proper spline kind is a key choice when building Custom gear drive shafts for mechanical systems.

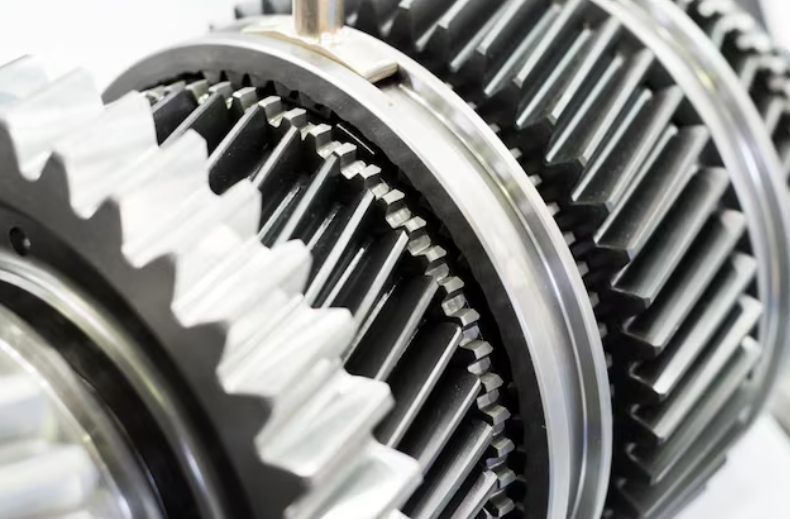

Involute Splines for High Torque
Involute splines appear in many current factories because of their great power. Their rounded ridge shape resembles that of a regular gear. This lets them center themselves when loaded. The design spreads pressure evenly over the ridges. As a result, they suit tasks with a strong turning force. When we build a planetary gear setup, we often pick involute splines for the main sun gear or holder shafts. This choice guarantees top-load support and steadiness.
Parallel Key and Serrated Splines
Straight-sided splines, known as parallel key types, serve well when exact centering matters less than simple making and upkeep. On the other hand, serrated splines have numerous tiny, wedge-like ridges. People use these mainly for fixed links or tasks needing small-angle changes. Examples include steering shafts or basic power devices.
Solving User Pain Points with Precision Manufacturing
The main trouble for most factory users is “time without operation.” In areas like mining and subway networks, parts face harsh rubbing and heavy weights. Even a small error in a spline fit creates tiny “looseness.” Over time, this leads to ridge breaking or tiredness cracks.

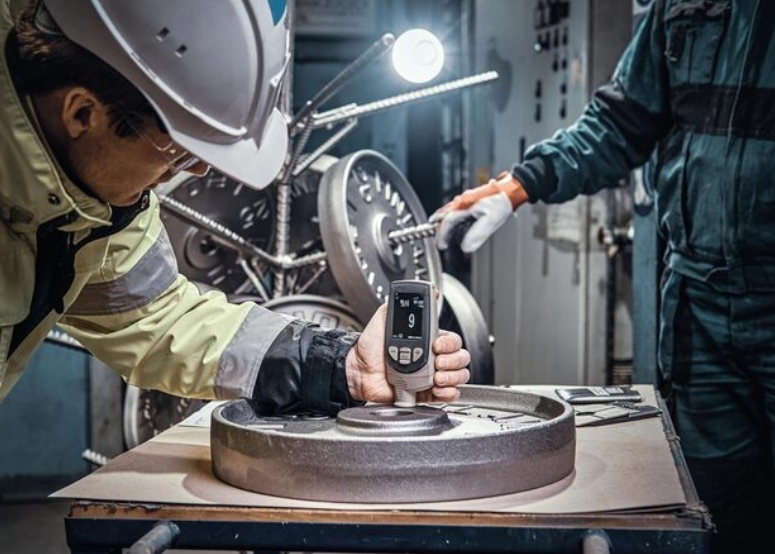

Micron-Level Grinding Excellence
To fix these issues, YIZHI MACHINERY employs modern gear shaping and inner/outer grinding methods. We reach tiny measurement accuracy using exact tools. This ensures each spline ridge lines up just right. Our “carefully ground” method makes our Custom gear drive shafts for mechanical systems stand out. It gives a smooth surface that cuts down on rubbing and sounds a lot.
Customization as a Technical Highlight
Each factory uses its own needs for stuff, sizes, and accuracy. We go beyond ready-made items. Instead, we provide complete tailoring. So, if you require a certain size unit, a special push angle, or unique heating processes like hardening and cooling to boost outer toughness, our group creates a custom fix.
Critical Applications and Solutions
Our spline styles work in many fields, from farming to air travel.
High-Efficiency Worm Gear Systems
In various auto assembly lines or lifting tools, a Shaft worm gear for efficient power transmission becomes essential. These setups depend on the worm’s locking feature. They also rely on the shaft’s exact fit from the splines. By choosing fine metal mixes like 42CrMo or 20CrMnTi, we make sure the worm shaft handles the rubbing in these builds. At the same time, it keeps a good power flow.
Compact Planetary Gear Reducers
The planetary gear reducer excels in using space well and packing torque tightly. Inside these, the inner splines and outer gear shafts must join with a perfect fit. This avoids shaking at fast turns. Our skill in making both the planetary gear and its linked transfer shafts creates a well-matched set. Consequently, it lengthens the life of the whole gearbox.
Practical Success: Case Studies
Our status as a reliable supplier worldwide comes from proven outcomes with famous companies.
- Precision Motion Systems: This top firm in auto control faced issues with setup reliability. They teamed up with YIZHI MACHINERY to make strong gears and splines for their movement setups. As a result, they cut down time without work and boosted output.
- TechDrive Solutions: This maker of factory machines needed parts for very hard settings. For more than three years, our carefully ground gear shafts have given them great lasting power. This has helped them improve their machines’ total work rate.
- Viktor Tsurkan: This well-known global maker demands very high accuracy. We supplied customized gear fixes that fit their special tech needs. This built a lasting, steady business tie.
Why Choose YIZHI MACHINERY?
In heavy-duty industrial equipment, even small issues with shaft connections can lead to costly breakdowns. Poor spline selection or manufacturing errors can cause shaking, sliding, or premature damage, resulting in system failures. YIZHI MACHINERY understands the importance of precise, durable splines. Since our founding in 2016, we have specialized in custom gear transfer parts that provide both accuracy and strength, designed to withstand tough working conditions. We offer a range of spline types, such as involute splines for high torque and serrated splines for applications requiring fixed links or small-angle changes. Our focus is on delivering solutions that keep your power transfer systems running smoothly.
To address common user issues like “time without operation,” YIZHI MACHINERY employs modern gear shaping and grinding techniques to achieve micron-level precision in our custom gear drive shafts. Our careful grinding process reduces friction and noise, ensuring smooth operation. We also offer complete customization for specific requirements, such as special sizes, push angles, or surface treatments. Our splines are used across various industries, from automotive assembly to high-efficiency worm gear systems. Choose YIZHI MACHINERY for reliable, high-quality gear solutions designed to improve your system’s performance and longevity.
FAQ
Q: What materials do you use for high-torque gear shafts?
A: We mainly use strong metals like 20CrMnTi, 42CrMo, and 20CrNiMo to provide top power and wear resistance.
Q: Can you achieve high-precision tolerances for splines?
A: Yes, our computer-controlled grinding and cutting tools let us hit tiny accuracy levels. We usually reach Grade 5 to 6 under ISO 1328 rules.
Q: Do you offer surface treatments for better durability?
A: We give complete heating services, such as hardening, cooling, and nitrogen adding. We also do outer fixes like coating and blasting.
Q: How long does a customized order typically take?
A: Making time changes with how hard it is and how many you order. We give a clear time plan right after the design and drawing step is approved.
