In tough industrial settings, the main threat to output is equipment breakdown. For technicians and site supervisors, nothing is more annoying than a splined shaft that breaks under pressure or creates too much shaking from bad tooth positioning. Such issues often arise from sloppy work in production. As a result, they cause pricey interruptions, faster damage to connected parts, and steep urgent fixes. When a drive setup breaks down, the usual source is a piece that could not withstand the force or missed the needed outer toughness.
Fixing these troubles needs more than a spare item. It calls for a collaborator who grasps the basics of movement. YIZHI MACHINERY, founded in 2016, focuses on tackling these very industry problems via top-quality tailored gear production. Through a focus on “solution-oriented sales,” we deliver the exactness and sturdiness required to keep your devices operating in the harshest setups.
The Critical Role of the Gear Shaft Machining Process

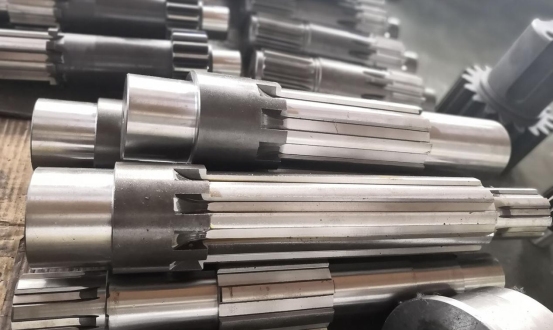

The path to a dependable drive starts with a strict gear shaft machining process. A spline gear shaft is a key part that combines gears and shafts into one unit. It is built to pass on a strong force while guaranteeing accurate straight or turning motion. Unlike basic shafts, splined types have special tooth patterns. These demand careful handling of shaft alignment and tooth outline exactness at the same time.
Selecting High-Performance Materials
Long-lasting quality begins with the base material. At YIZHI MACHINERY, we pick top-tier steels and mixes like 20CrMnTi, 42CrMo, 18CrNiMo7-6, 17CrNiMo6,and 20CrNiMo. We choose these for their skill in balancing outer hardness with inner strength after thermal processing. With these solid materials, the custom gear drive shafts for mechanical systems that we make can endure the tough needs of mining, subway networks, and factory pumps.
Primary Shaping: Hobbing and Milling

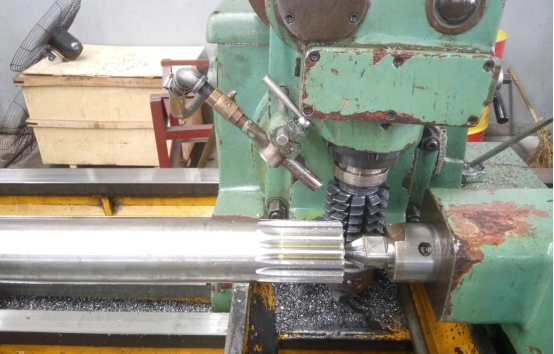

The first step in forming spline teeth usually involves hobbing or milling. Hobbing is a very effective gear-shaping method. It uses a dedicated tool called a hob to form the teeth. This makes it perfect for large-scale output with steady quality. For custom or unusual forms, we turn to modern milling devices. They give the flexibility needed for test batches or distinct tooth shapes.
The Technical Highlight: Precision Spline Grinding Shaft Manufacturing
Hobbing gives the basic form, but grinding delivers the real capability. At YIZHI MACHINERY, our key strength is precision spline grinding shaft manufacturing. This follow-up step is essential for critical uses where basic standards just won’t do.
Achieving Micron-Level Accuracy
With cutting-edge precision spline grinding shaft manufacturing, we polish the tooth outline to hit tiny-scale size control. Such fine work is vital for cutting down rubbing and sound while running. We shape each tooth face with care, which boosts drive output and greatly lengthens the part’s working life. In fields like aircraft and exact equipment, this sharpness makes sure the splines fit flawlessly with inner gears. Thus, it removes the “looseness” that causes harm.
ID & OD Grinding and ID Honing
To make sure the shaft matches its setup perfectly, we apply both Inner Diameter (ID) and Outer Diameter (OD) grinding. This keeps the inner holes and outer round areas within strict limits. It also gives a smooth outer layer that aids easy fitting and steady spinning balance.
Specialized Gear Solutions for Diverse Applications
Our skills go further than shafts to cover a wide array of drive parts. As a top custom spiral bevel gear manufacturer, we offer fixes for force transfer between crossing shafts, often at a right angle.
Customized Spiral Bevel Gears

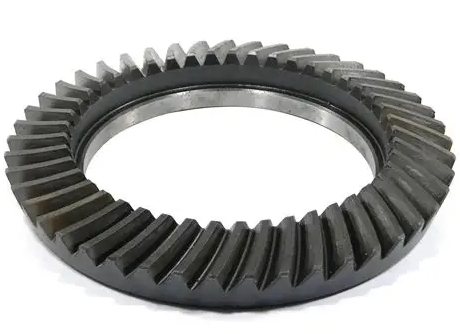

Our spiral bevel gears have distinct curved teeth that provide gradual touch during fitting. This setup brings better evenness and greater weight-handling power than plain bevel gears. As a custom spiral bevel gear manufacturer, we adjust the materials (often 42CrMo) and sharpness levels (ISO 8-9) to fit the exact wants of ship drives, control setups, and big machine boxes.
High-Precision Planetary Gear Systems
In small, strong-force areas, our inner gears serve as planetary gear speed reducers. These setups need reliable transfer and quiet running. We reach that with wide-fitting overlap factors and careful inner gear shaping. For uses like hoists or tool feeder drives, our planetary gear parts make the best use of space while giving a huge force.
Verified Success in Extreme Conditions
Our reputation as a strong producer is supported by ongoing ties with well-known global firms. We have handled tough custom jobs that show our skill level.
- Case 1: Precision Motion Systems: This automation firm faced issues with setup dependability. They switched to our capable gears and custom gear drive shafts for mechanical systems. As a result, they cut work stoppages and boosted their production capacity a lot.
- Case 2: TechDrive Solutions: For more than three years, this factory maker has depended on our sharp gears. Our items have shown outstanding lasting power even in harsh work conditions. This has helped them improve their gear’s total output.
Partner with YIZHI MACHINERY for Your Next Project
Our dedication to standards comes from a thorough two-part check system. Each gear shaft machining process ends with a full review using CNC Gear Measuring Devices and CMMs. We check tooth form, spacing, outer texture, and touch exactness. This ensures every item hits or beats ISO 1328 Grade 5 to 6 levels.As a worker-held firm (ESOP), our group is personally driven to uphold the top levels of quality. We offer complete services, including quick 24-hour advice replies and a set OEM flow.
Get Your Custom Solution Today. Quit allowing gear breakdowns to control your making timeline. Reach out to YIZHI MACHINERY for sharp-ground, tough-lasting splined shafts and gear parts made just for your setup.
FAQ
Q: What materials are typically used for high-precision splined shafts?
A: We use fine alloys such as 20CrMnTi, 42CrMo, 18CrNiMo7-6, 17CrNiMo6, and 20CrNiMo to guarantee strong power and wear resistance.
Q: What level of machining precision can YIZHI MACHINERY achieve?
A: Our gear sharpness often hits ISO 1328 Grade 6-8. For top-ground items, it reaches Grade 5.
Q: Do you provide heat treatment and surface hardening services?
A: Yes, we supply carburizing, quenching, tempering, and outer hardening (such as nitriding) to match certain hardness needs.
Q: How does the customization process work for a new project?
A: It covers demand talk, detailed design/sketch, sharp making, tight check, and pro packing.
