In a high-torque industrial setup, a mechanical engineer has to ensure a smooth gear performance. Although helical gears are normally used for their smooth performance, they are not very effective in handling high loads, which may cause a decrease in efficiency. This may result in wear and tear of the machinery, leading to a decrease in productivity. In contrast, Herringbone and double helical gear types are used to overcome all the problems associated with helical gear types. These gear types are very reliable and durable, which helps in reducing operational costs.
YIZHI MACHINERY, founded in 2016, focuses on addressing these challenges through accurate gear design. As a committed producer emphasizing “solution-based sales,” we supply customized transmission parts that remove unwanted axial forces and boost load-handling ability. Our skills in precise production enable us to create gears that satisfy the toughest industrial standards.
Decoding the Mechanics: Herringbone Gear vs Double Helical
Grasping the key differences between Herringbone gear vs double helical proves vital for any company or supplier aiming to improve their supply network for heavy equipment. Both types employ two groups of helical teeth angled oppositely, so they offset axial thrust and form a balanced setup that improves steadiness.
The Structural Gap in Double Helical Gears
A double helical gear includes two helical gears joined coaxially, with helix directions facing opposite ways. What sets this type apart is the middle groove or space between the tooth groups. This space serves more than looks; it eases tool withdrawal during cutting, which makes it a practical option for moderate to heavy load scenarios. Since they are simpler to produce yet still offer balanced thrust, they commonly appear in industrial speed reducers and ship drives.
The Integrated Excellence of Herringbone Gears

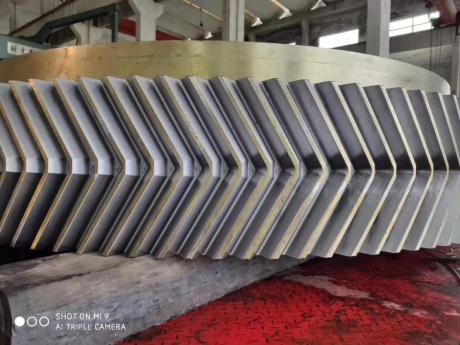

The herringbone gear represents a refined, single-piece form of the double helical approach. In contrast to the other, the herringbone shape flows without interruption, creating a smooth “V” pattern over the gear surface. This unbroken tooth layout permits even greater efficiency in power transfer, often hitting 98%–99.5%, along with superior capacity for loads. Yet, the absence of a middle groove raises the challenge of fabrication, as it calls for dedicated tools and sophisticated, customized methods.
Precision Manufacturing at YIZHI MACHINERY
As top double helical gear manufacturers, we recognize that a gear’s dependability hinges on its accuracy. YIZHI MACHINERY employs cutting-edge gear grinding and CNC machines to secure tolerances at the micrometer scale.
High-Precision Double Helical Gears
Our double helical gears suit modules from 3 to 20, with helix angles reaching up to 45°. We select quality materials like 20CrMnTi and 42CrMo to provide strong surface hardness combined with solid core strength.
- Advantage: Through exact grinding, we attain Grade 6~8 (ISO 1328) precision, and even Grade 5 for parts needing fine assembly. Such detail greatly prolongs the lifespan and efficiency of transmission in your equipment.

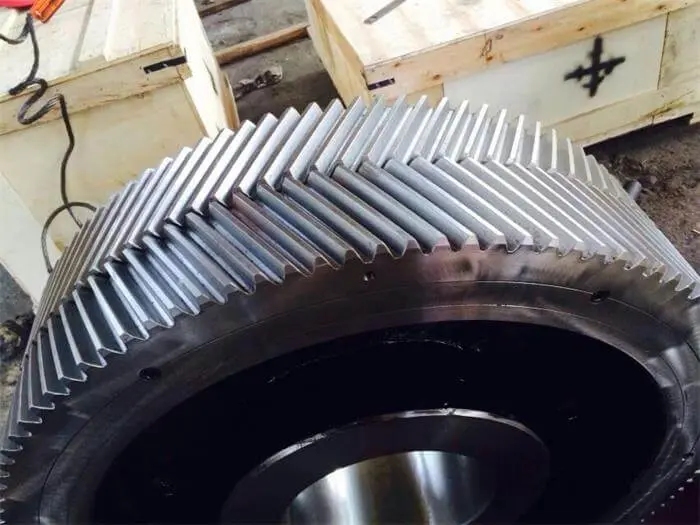

Customized Herringbone Gears for Extreme Conditions
Our herringbone gears undergo careful design for very demanding tools, such as large rolling mills and mining devices.
- Feature: These gears include seamless tooth sides that fully eliminate axial thrust.
- Advantage: We deliver complete customization, so you can pick materials such as 20CrNiMo or 40CrNiMo to handle severe wear and fatigue. Our routine OEM method ensures that intricate “V” shapes arrive with reliable quality.
Selection Criteria: Selection of Optimal Gear Profile
When it comes to deciding whether a double helical gear or a herringbone gear is best suited for integration into a mechanical system, there are a number of factors that need to be taken into consideration.
- Manufacturing Complexity vs. Budget：
If cost efficiency and standard manufacturing schedule are of primary concern, then the double helical gear is probably the better choice. This is because of the gap between the gear teeth, which makes it easier for standard machining tools to be implemented.
- Load Density and Spatial Constraints:
On the other hand, if a project requires a gear with a high load density and spatial constraints, then the herringbone gear is the better choice. This is because of its continuous gear design, which maximizes the effective face width of the gear.
- Maintenance and Precision:
For systems requiring nearly perfect efficiency with minimum vibration, the herringbone gear is probably the better choice, as long as the budget can afford the specialized grinding required to ensure a precise “V” apex.
Proven Reliability in Extreme Conditions: Industry Cases
Our standing as a reliable ally among double helical gear manufacturers rests on confirmed achievements with international firms.
- TechDrive Solutions: A key maker of industrial machines has obtained our accurate gears for more than three years. Our items have shown outstanding endurance in harsh settings, which has helped them enhance machine performance notably.
- Viktor Tsurkan: As a globally known producer with strict accuracy demands, they depend on our customized gear options to fulfill unique needs in applications.
- Precision Motion Systems (PMS): Through working with us on high-output gears for their control systems, PMS managed to cut downtime and raise productivity overall.
Why Partner with YIZHI MACHINERY?
Selecting YIZHI MACHINERY involves picking a worker-owned firm (ESOP). We apply a twofold quality check system merging daily on-site reviews with expert lab tests to confirm that every gear matches the precise tooth form, spacing, and surface finish you specify. With responses to consultations available around the clock and support through the entire process, we give your company the steady supply network it requires to succeed.
Ready to upgrade your transmission systems? Reach out to our engineering group now for a detailed estimate and tailored technical advice.
FAQ
Q: What is the main difference in the comparison of Herringbone gear vs double helical?
A: Double helical gears have a central groove between the tooth sets for easier machining, while herringbone gears have a continuous, gapless “V” shape for higher load capacity.
Q: What are the primary double helical gear uses?
A: They are mainly used in marine propulsion, mining machinery, heavy-duty reducers, and compressors where self-balancing axial thrust is required.
Q: What precision grades can your company achieve?
A: We typically reach ISO 1328 Grade 6~8, with some high-precision ground products achieving Grade 5.
Q: Does YIZHI MACHINERY provide customized heat treatment?
A: Yes, we offer various treatments, including carburizing, quenching, tempering, and surface hardening to enhance wear resistance.
