In the field of industrial power transmission, mechanical designers often face a challenging dilemma. They need substantial torque reduction in very tight spaces. Additionally, safety-critical braking is usually essential. Common gear setups frequently fail to meet these needs. They suffer from too much backlash, back-driving in lifting tasks, or early wear because of poor surface finishes. If a high-torque system breaks down or an elevator slips backward due to weak self-locking, the consequences can be severe. This leads to long periods of downtime and major safety hazards. Such issues call for more than ready-made parts. Instead, they demand a reliable partner who can supply carefully designed, custom solutions.
YIZHI MACHINERY, founded in 2016, started to fill this void in the worldwide supply chain. As a dedicated worm shaft manufacturer for industrial gear systems, we emphasize “solution-based sales.” We employ sophisticated machining techniques to tackle the toughest technical challenges. Our dedication to precision at the micrometer scale and tailored production makes sure that your transmission setups run with top efficiency and dependability.
Understanding the Mechanics of Worm Gear Sets
A worm gear set is a special type of crossed-shaft transmission device. It includes two main parts: a worm, which looks like a threaded rod, and a worm wheel, which serves as a custom helical gear. These parts usually cross at a 90-degree angle. This setup enables large speed reductions commonly from 10:1 to 80:1 in one stage while keeping the overall size quite small.

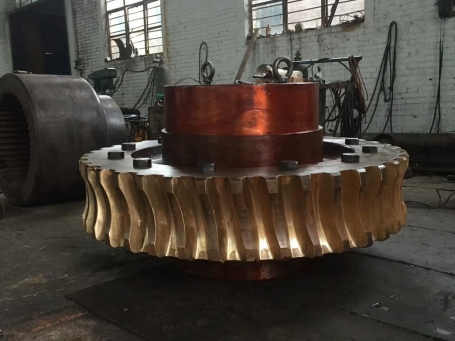

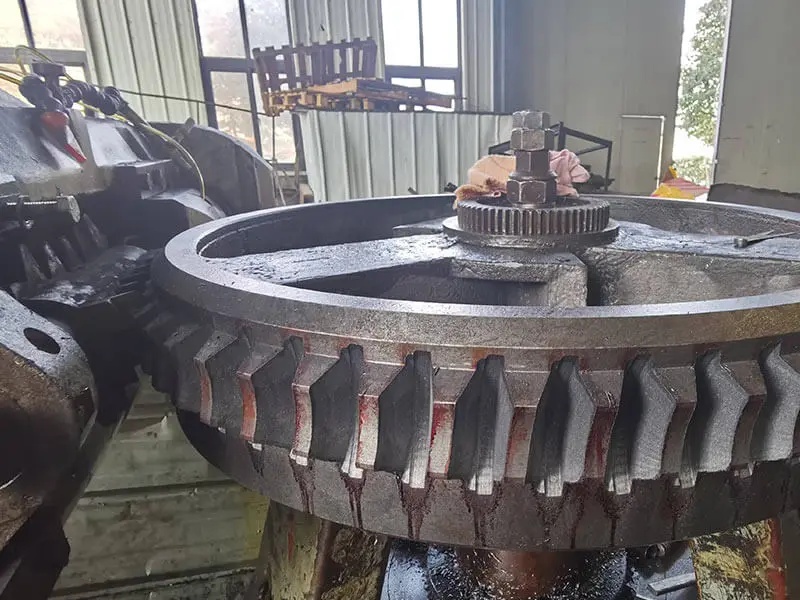

The Engineering of High-Performance Worm Shafts and Worm Wheel Sets
The key to the durability of high-performance worm shaft and worm wheel sets is choosing the right materials and achieving superior surface quality. Unlike spur gears, which use rolling contact, worm gears depend on sliding contact. As a result, they are more likely to generate heat from friction. At YIZHI MACHINERY, we select strong alloys such as 20CrMnTi and 42CrMo for the worm shaft. We pair them with accurately machined worm wheels. This combination delivers outstanding resistance to wear.
The Advantage of Self-Locking Capabilities
One of the greatest benefits of a high-performance worm system is its self-locking feature. When the worm’s lead angle is less than the matching friction angle, the output shaft cannot drive the input shaft in reverse. This built-in safety is vital for equipment like hoists, elevators, and automated production lines. In these cases, stopping backward movement is crucial for maintaining system safety and integrity.
Precision Manufacturing: The YIZHI MACHINERY Technical Edge
The effectiveness of any industrial gear system ties closely to how precisely it is made. Even a minor error in the tooth shape can cause unwanted noise, shaking, and wasted energy.
Micrometer-Level Grinding Excellence
As a top worm shaft manufacturer for industrial gear systems, YIZHI MACHINERY views gear grinding as an essential finishing step. We apply advanced grinding methods so that each tooth surface gets shaped with great care for optimal smoothness. Our computer-controlled machines allow us to control dimensions to the micrometer level. We usually hit Grade 6 to 8 under ISO 1328 standards. For some advanced products, we reach Grade 5. Such accuracy boosts transmission efficiency to 95%-99% across different uses. It also greatly prolongs the lifespan of the gears.
Full-Dimensional Customized Service
We recognize that each industrial use has its own demands. Our customization options include all key aspects, such as sizes, materials, and heat processes like carburizing and quenching, which improve surface hardness. If you need a particular module (up to Max 30) or a specific helix angle, our routine OEM workflow from initial discussions to final checks guarantees a flawless fit for your mechanical setups.
Diverse Solutions for Motion Control
Although we excel as a worm shaft manufacturer for industrial gear systems, our production skills also cover other vital transmission parts. These elements support today’s machinery effectively.
Advanced Shaft Bevel Gear for Power Transmission
For tasks that involve transferring power between shafts that intersect, where smooth operation and high speed matter most, we provide the advanced shaft bevel gear for power transmission. In particular, our spiral bevel gears have teeth with curved paths. This ensures gradual engagement when they mesh. The design offers 20%-40% greater capacity for loads compared to straight bevel gears. Moreover, it runs much more quietly. These qualities make it perfect for steering mechanisms and gearboxes in heavy equipment.

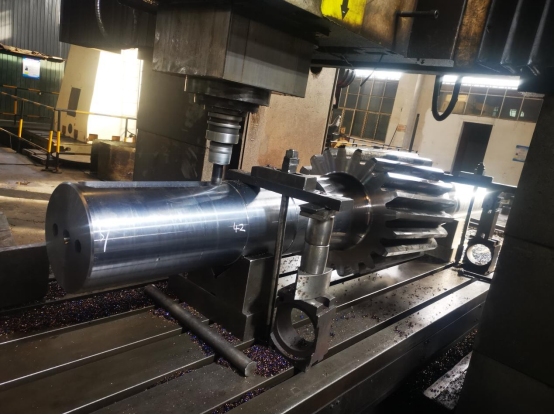

Integrated Gear Shaft Solutions
Our gear shafts combine gears and shafts into one unit. This removes gaps from the assembly and increases overall strength. They play a key role in small-scale devices, such as robot joints and precise instrument drives. In these applications, any energy loss from fitting mistakes is unacceptable.
Industry Solutions and Proven Success
Our company’s standing for production quality is backed by ongoing collaborations with well-known global firms. We offer customized approaches in six main areas, including mining, metro systems, and pump production.
- TechDrive Solutions: This maker of industrial machines has obtained precise gears from us for more than three years. Our high-performance worm shaft and worm wheel sets have shown remarkable toughness in harsh conditions. As a result, they improved their equipment’s performance.
- Precision Motion Systems: A top player in automation that needed strong gears for controlling movement. After using our finely ground gears, they cut down on downtime and boosted output considerably.
Partnering with YIZHI MACHINERY
In the fast-paced realm of industrial production, the caliber of your gear parts determines how trustworthy your brand appears. YIZHI MACHINERY blends solid quality controls with extensive technical knowledge. We deliver high-performance worm shafts and worm wheel sets and advanced shaft bevel gears for power transmission solutions that drive global industry forward. Our quick 24-hour response for consultations and complete technical guidance ensures your project progresses smoothly from planning to completion.
Contact Us Today. Are you prepared to improve your transmission systems using precisely ground gears? Reach out to YIZHI MACHINERY for an expert custom solution.
FAQ
Q: What is the maximum precision level your gears can achieve?
A: Our gear precision typically reaches Grade 6–8 according to ISO 1328, with high-precision products reaching Grade 5.
Q: Can you handle high-load mining applications?
A: Yes, we use high-strength alloys and professional heat treatment to ensure our gears meet the durability requirements of heavy-duty mining environments.
Q: Do you provide design assistance for customized orders?
A: Absolutely. Our professional design team formulates detailed solutions based on your specific application scenarios and drawings.
Q: What materials are available for worm gear sets?
A: We use high-quality materials, including 45# steel, 40Cr, 42CrMo, and various copper alloys (like ZCuSn10P1) to balance strength and friction performance.
