In the tough field of industrial drive systems, the connection between a gear and its shaft often turns into the weakest spot for breakdowns. Engineers and maintenance managers commonly run into the expensive “assembly clearance” issue. Even a tiny misalignment between a standalone gear and shaft can cause too much shaking, heat buildup, and finally, a major mechanical collapse. When a high-torque transmission system breaks down because of a slipped keyway or a loose press-fit, the downtime that follows might cost a business thousands of dollars each hour. These ongoing problems such as energy waste, loud noise, and regular part swaps call for shifting from basic parts to combined, carefully made options.
YIZHI MACHINERY offers a clear fix for these issues. We started in 2016, and we focus on custom design and the making of accurate gear transmission parts. As a trusted gear shaft manufacturer for custom solutions, we work on a “solution-based sales” approach. This means every part we send out fits the exact torque, accuracy, and toughness needs of our worldwide clients, including TechDrive Solutions and Precision Motion Systems.

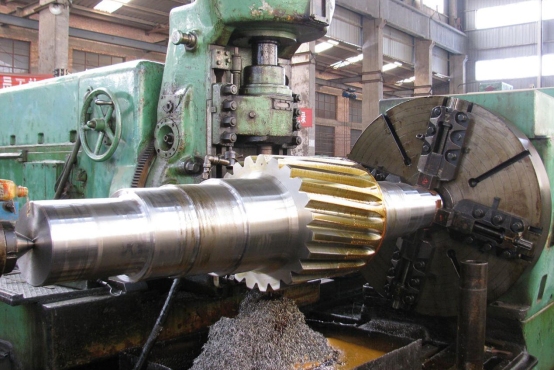

Solving the Critical Failure Point: The Gear-Shaft Interface
Standard mechanical setups usually depend on separate gears attached to shafts through keys, splines, or tight fits. Although these ways are widespread, they bring in setup mistakes and spots where tiredness can build up. To get rid of these dangers, YIZHI MACHINERY focuses on combined gear shafts, where the tooth shape gets cut right into the shaft itself.

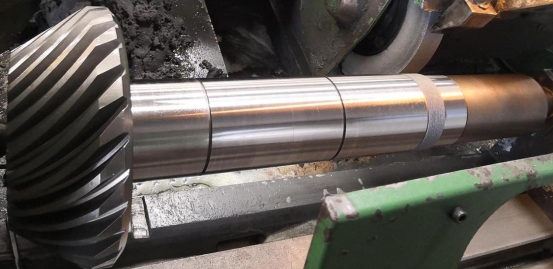

Eliminating Assembly Clearance
The main benefit of a combined gear shaft lies in fully removing assembly clearance. This setup makes sure the gear and shaft act as one solid piece, which delivers the sharp transmission accuracy needed for demanding tasks like robot joints, machine tool spindles, and small gearboxes. When you pick a trusted gear shaft manufacturer for custom solutions, those in the industry can cut down on the pieces in their setup. As a result, they lower breakdown chances and make upkeep easier.
Gear on Shaft Connection Techniques for High Performance
Reaching tiny precision levels calls for a smart mix of cutting methods. At YIZHI MACHINERY, our gear on shaft connection techniques for high performance cover a smooth shift from picking raw materials to the last grinding step. We pick strong steels and metals—such as 42CrMo, 20CrMnTi, and 17CrNiMo6—to make certain our parts have the power and resistance to wear that heavy industrial jobs require.
Precision Grinding and Manufacturing Mastery
The key to our company’s good name in grinding accuracy comes from our top-notch finishing steps. Once we do the first hobbing or shaping, we use high-accuracy gear grinding. This process shapes each tooth surface to get the best smoothness. Such gear on shaft connection techniques for high performance let us hit accuracy grades of 5 to 6 under ISO 1328 rules.
Besides that, we provide full heat treatment options, like carburizing and quenching, which boost surface hardness yet keep a flexible center. This skill in making ensures our gear shafts can handle the huge side forces and twisting power seen in mining equipment and city train drive systems.

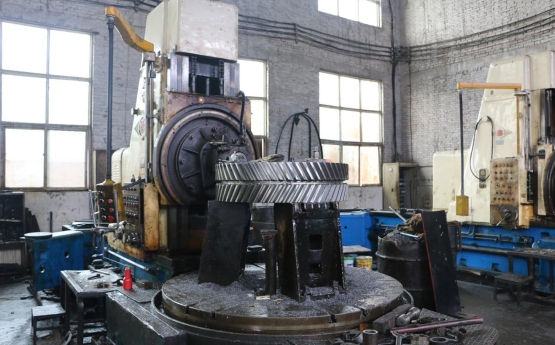

Custom Double Helical Gears for Specialized Machinery
For machines that run under moderate to heavy loads at fast speeds, usual spur gears often fall short because of the racket and side push they create. Here, custom double helical gears for specialized machinery prove essential. These parts join two helical gears side by side with twist directions that go the other way, so they balance side push on their own and skip the need for extra push bearings.
Handling Axial Loads without Thrust Bearings
Our custom double helical gears for specialized machinery blend the strong load-holding skill of helical types with the steadiness of spur designs. This fits them well for ship drive systems, big compressors, and machine tool spindles. When we grind them accurately at YIZHI MACHINERY, these gears give drive efficiencies up to 99%. That cuts energy waste a lot in power-heavy industrial settings.
Engineering Reliability: Quality Assurance Process
Accuracy means little without strict checks. As a trusted gear shaft manufacturer for custom solutions, we set up a two-part quality check system. It links everyday shop checks with cutting-edge lab reviews.
We confirm our gear on the shaft connection techniques for high performance by using:
- Coordinate Measuring Machines (CMM): These check tricky tooth shapes and ensure proper shape matching.
- Non-Destructive Testing (NDT): We apply sound wave testing and magnetic speck checks to find hidden inside faults and outer splits that eyes can’t spot.
- Spectroscopy: This confirms the makeup of raw materials matches the tough rules for 40CrNiMoA or other special metals.
This “Quality-Based” way of running makes sure every gear shaft and custom double helical gear for specialized machinery that leaves our place can face harsh work conditions.
Case Studies: Real-World Transmission Excellence
Our skills in tech shine brightest through how well our customers do. TechDrive Solutions, a big maker of industrial machines, had trouble with how long their gear setups lasted in hot spots. They teamed up with YIZHI MACHINERY for custom gear shafts. We switched them to a joined design that used our strong quenching and tempering steps. For more than three years now, our gears have cut their stop times a lot and boosted machine output.
Precision Motion Systems (PMS) needed top accuracy for their move control parts. We gave them a fix with custom double helical gears for specialized machinery and sharply ground spline shafts. Our way of keeping tiny gaps through CNC turning and grinding helped PMS raise their production speed and quiet down system sounds.
Drive the Future of Your Industry
Be it for farm machines or strong steam turbines, how well your gear-to-shaft link works sets how long your system lasts. YIZHI MACHINERY mixes top-making strength with a real focus on tailoring. As your trusted gear shaft manufacturer for custom solutions, we give quick 24-hour advice replies and a full OEM way to turn your plans into real items with matchless accuracy.
Contact YIZHI MACHINERY today to request a quote and discover how our precision-ground solutions can optimize your transmission systems.
FAQ
Q: What materials are available for your custom gear shafts?
A: We use high-grade steels and alloys like 45# steel, 40Cr, 42CrMo, and 20CrMnTi to ensure maximum strength and wear resistance.
Q: What is the maximum precision level your gears can achieve?
A: Through advanced gear grinding, our products reach Grade 6~8 under ISO 1328, with high-precision items reaching Grade 5.
Q: Why choose integrated gear shafts over separate assemblies?
A: Integrated shafts eliminate assembly clearance, increase rigidity, and reduce energy loss and failure rates.
Q: Can you manufacture custom double helical gears for specialized machinery?
A: Yes, we customize dimensions and materials for double helical gears to self-balance axial thrust in high-load applications.
Q: How do you handle quality control for custom orders?
A: We use a dual system of shop-floor inspection and lab analysis, including CMM, spectroscopy, and NDT .
