Why Spiral Bevel Gears Suit High-Speed Power Transmission
Geometry Features That Support Smooth Meshing

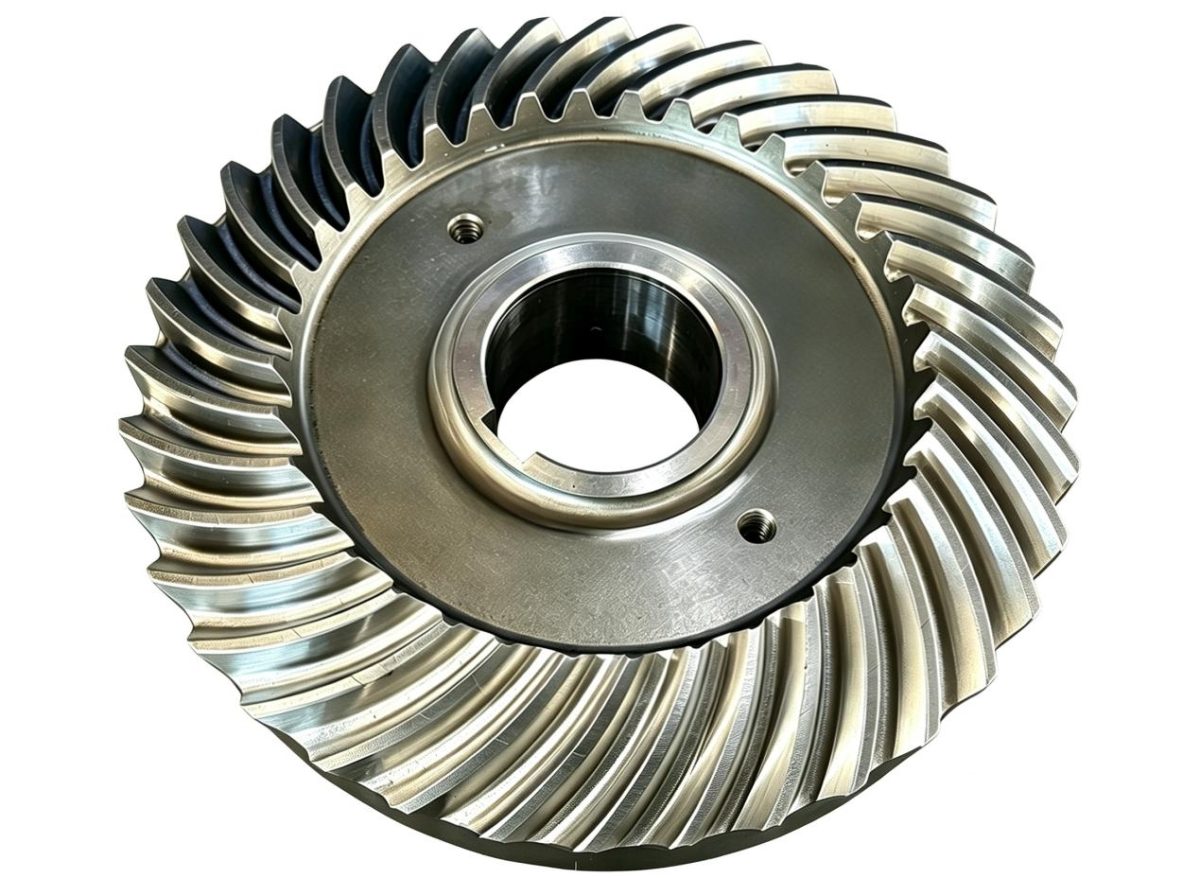

For intersecting-shaft transmissions running at elevated speed, the value of spiral bevel geometry starts with the tooth path itself. Bevel gears with a helical tooth profile and curved tooth traces have their axes intersect (usually at 90°). That curved trace changes the way teeth come into contact. Instead of abrupt full-width engagement, the contact develops progressively along the flank, which reduces entry shock and helps stabilize dynamic loading.
Progressive contact of tooth flanks during meshing enables smooth transmission with low noise. In practical terms, this progressive engagement matters because high-speed gear sets are rarely limited by nominal torque capacity alone. They have limitations of excitation, sensitivity to transmission error, retention of lubricant film, and heat generation. However, proper design of the spiral bevel gear enhances all four by providing a smooth transition between successive tooth pairs.
The geometry also spreads force more effectively. More teeth are involved in meshing, delivering strong load-carrying capacity. That load-sharing behavior reduces peak flank pressure and supports more stable torque transfer than simpler bevel forms.
Contact Ratio and Load Distribution in Spiral Bevel Gear Sets
In high-speed operation, effective overlap between contacting teeth is central to durability. A spiral bevel gear set generally operates with greater contact continuity than a straight bevel set, which lowers localized stress and suppresses dynamic impact.
Far superior transmission smoothness to straight bevel gears, suitable for medium and high-speed working conditions; 20%-40% higher load-carrying capacity than straight bevel gears, with better wear and fatigue resistance; transmission efficiency up to 96%-99% with minimal power loss. For expert designers, the significance is not only higher theoretical capacity. It is improved running stability under variable torque, transient loading, and fluctuating shaft deflection.
Load distribution across multiple contact zones also reduces sensitivity to minor mounting or elastic deformation. That benefit becomes especially important in compact gearboxes, where housing stiffness and bearing span may limit ideal alignment.
How Sliding and Rolling Actions Influence High-Speed Operation
A spiral bevel mesh combines rolling and sliding action along the tooth flank. The objective is not to eliminate sliding, because that is impossible in bevel gearing, but to control where and how it occurs. High-speed performance depends on balancing:
- flank friction
- elastohydrodynamic film formation
- flash temperature risk
- contact fatigue resistance
When flank geometry, microgeometry, and lubrication are matched correctly, controlled sliding helps maintain efficient power transfer without excessive surface distress. When not matched correctly, the same sliding can accelerate scuffing or micropitting.
Performance Advantages Compared with Other Bevel Gear Forms
Spiral Bevel Versus Straight Bevel in Dynamic Conditions

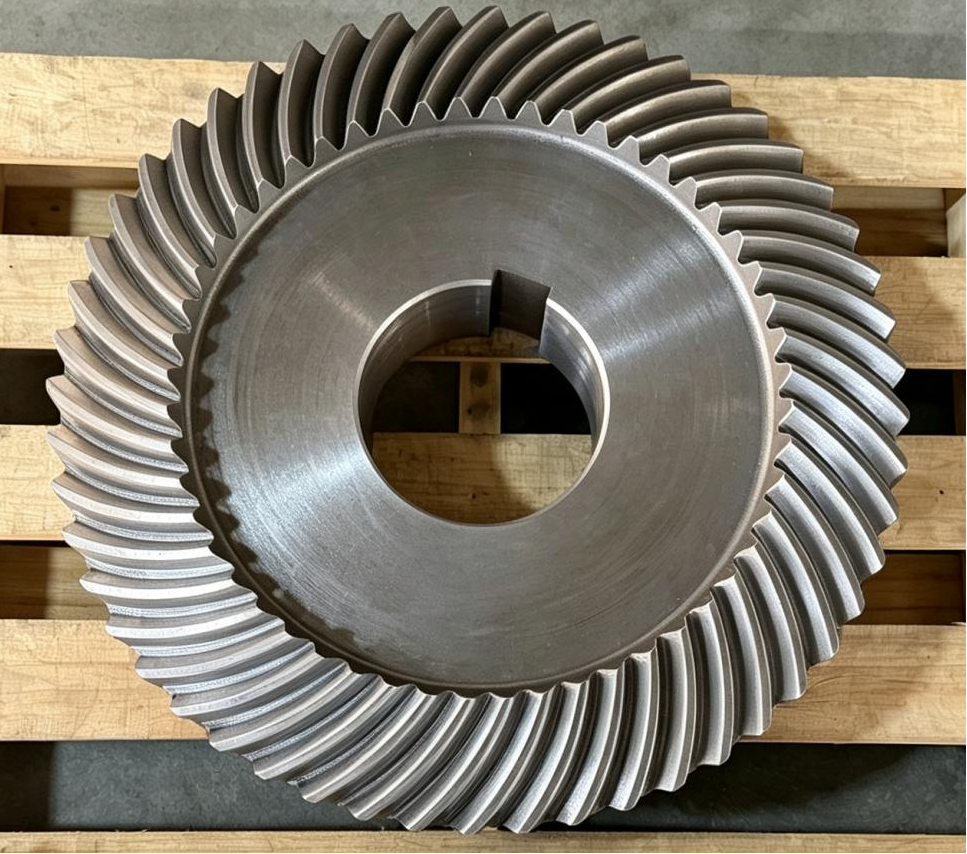

The comparison with straight bevel gears is decisive in many speed-critical systems. Straight Bevel Gear remains viable for economical, lower-speed drives, but its contact behavior is less refined. Tooth flanks make simultaneous contact and separation along the tooth width during meshing, leading to relatively high impact and noise.
By contrast, the spiral bevel profile reduces abrupt engagement and therefore reduces dynamic shock, airborne noise, and structure-borne vibration. This is why a spiral gear manufacturer serving advanced driveline, aerospace, and machine-tool sectors often prioritizes spiral bevel solutions where speed and refinement outweigh lowest initial cost.
Spiral Bevel Versus Zerol Bevel in Application Demands
Zerol bevel gears can be useful when lower spiral angle characteristics fit packaging or manufacturing preferences, but they do not always deliver the same level of smoothness under demanding rotational speeds. In systems where quieter transmission, higher pitch-line velocity, and better dynamic behavior are required, spiral bevel gears are more frequently selected.
Selection still depends on the full operating envelope:
- transmitted torque
- duty cycle
- alignment sensitivity
- thermal constraints
- manufacturing targets
Relevance of Gear Choice in Compact High-Speed Systems
Compact high-speed systems require torque density without sacrificing motion control. A spiral bevel gear can support angular power transfer in a smaller envelope than many alternative transmission arrangements, but the surrounding mechanical structure remains critical. Designers must assess shaft support stiffness, bearing preload, lubrication path, and housing thermal distortion together with tooth geometry.
Application Areas Where Spiral Bevel Gears Deliver Value
Aerospace and Precision Motion Systems

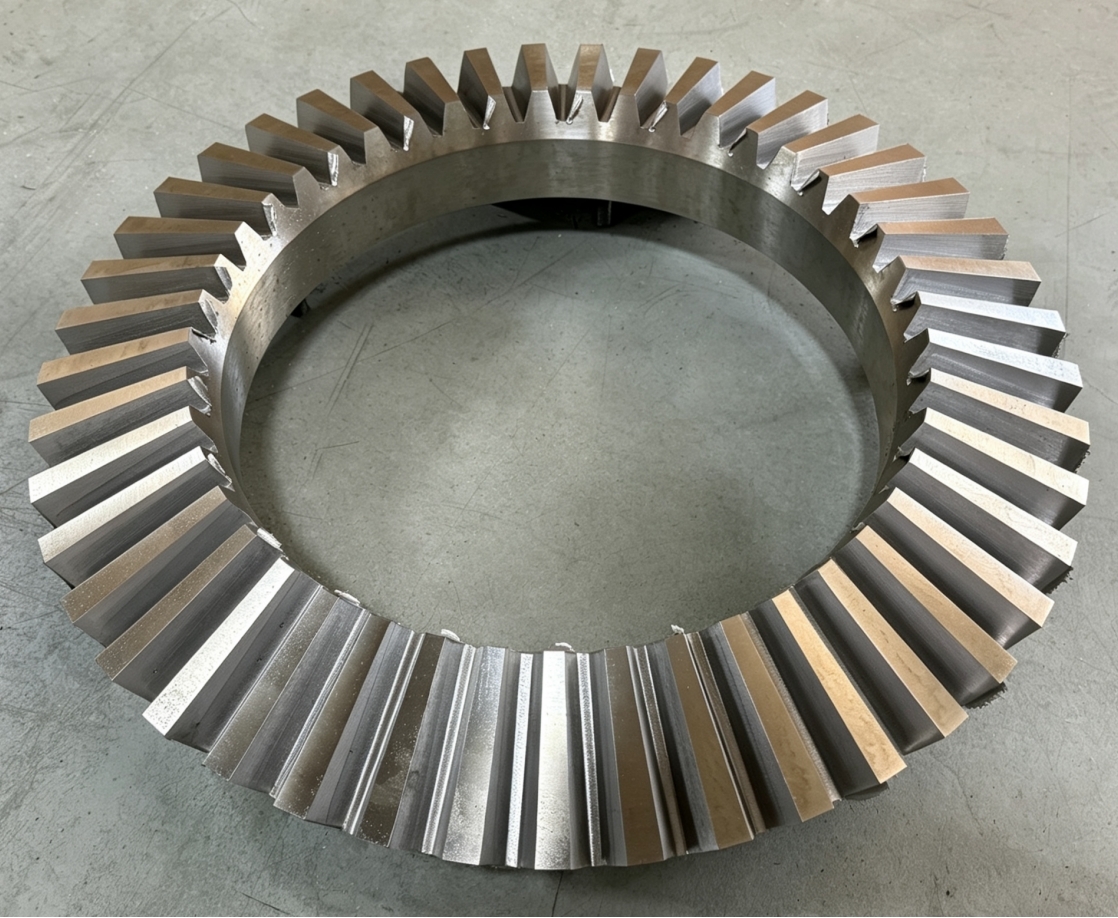

High-speed aerospace and precision motion systems require low vibration, compact packaging, and strict reliability.
Automotive and Performance Driveline Systems
Automotive and performance drivelines value refined torque transfer, reduced noise, and durability at elevated rotational speed. Spiral bevel gear sets are especially relevant where intersecting shafts and compact layouts coincide.
Industrial Machinery and Energy Equipment
Industrial gear applications vary widely, from compressors to specialized reducers. Provide industrial-grade precision gear manufacturing services, mainly adapted to general industrial machinery such as air compression equipment, ensuring the transmission efficiency and stability of the machinery. This is one reason application-specific engineering remains essential.
Critical Design Factors a Spiral Gear Manufacturer Must Control
Tooth Geometry Accuracy and Its Impact on Running Quality
At high speed, small geometric deviations become large dynamic problems. Profile error, lead error, pitch variation, runout, and spiral angle deviation all influence mesh stability and contact pattern migration. That is why manufacturing accuracy is inseparable from application performance.
Relying on advanced processes including hobbing, gear shaping, grinding, and CNC equipment, our gear precision can reach Grade 6~8 in accordance with the ISO 1328 standard, and some high-precision products can achieve Grade 5. We are also equipped with advanced professional gear testing equipment to ensure that key parameters such as tooth profile, tooth trace, and pitch meet customer requirements.
For expert buyers evaluating a spiral gear manufacturer, these capabilities are not marketing details. They indicate whether the supplier can control transmission error before the gear set enters service.
Material Selection for High-Speed Spiral Bevel Gear Applications
Material choice determines more than static strength. It affects hardenability, residual stress response, pitting resistance, root fatigue life, and thermal stability. Alloy steels are widely used because they provide the combination of strength and heat-treatment response required for demanding spiral bevel gear applications.
Utilizing high-grade steel and alloy materials ensures exceptional strength, hardness, and wear resistance. The correct grade should be selected based on load spectrum, rotational speed, lubricant regime, and environmental exposure.
Heat Treatment Requirements for Surface Durability
Surface durability in high-speed gearing depends heavily on heat treatment consistency. We provide a complete range of heat treatment and surface treatment services, including: Carburizing and quenching, quenching and tempering, induction hardening, etc., to improve hardness and wear resistance;
Carburized and hardened spiral bevel gears typically combine a hard wear-resistant case with a tougher core, which is essential for resisting pitting on the flank and bending fatigue at the root. Distortion control during heat treatment is equally important, because post-heat-treatment geometry drift can erase the benefits of accurate cutting.
Surface Finish and Microgeometry Optimization
Surface finish influences lubricant film development, asperity interaction, and scuffing resistance. For high-speed spiral bevel applications, finishing and flank modification frequently determine whether a theoretically sound design performs well in real service.
Useful microgeometry measures include:
- crowning to reduce edge loading
- bias correction to improve loaded contact pattern
- local flank refinement to reduce sensitivity to misalignment
Conclusion
Choosing a spiral bevel gear for high-speed service is fundamentally a decision about controlled meshing, better load distribution, lower excitation, and stronger reliability margins. When geometry design, metallurgy, heat treatment, finishing, inspection, and lubrication are aligned, the spiral bevel platform delivers measurable advantages over simpler bevel forms in demanding applications. YIZHI MACHINERY stands out when those requirements call for customized engineering depth, controlled manufacturing precision, and application-focused quality assurance.
Contact us to discuss a spiral bevel gear solution for your high-speed transmission program.
