A double helical gear solves one of the biggest challenges in high-load power transmission: how to gain the smoothness and strength of helical gearing without leaving the gearbox to fight continuous axial thrust. By pairing two opposite helix directions on the same gear body, the design balances thrust internally, improves load sharing, and supports quieter operation in demanding drives. For reducers, compressors, marine propulsion units, and machine tool spindles, the result is a compact gear solution built around stability rather than compromise.
For readers comparing industrial gear options, YIZHI MACHINERY gear solutions show how double helical, herringbone, bevel, worm, and machined components fit different transmission layouts.
Why Double Helical Gear Design Matters in Heavy-Duty Drives
Opposed Helix Teeth and Axial Thrust Balance

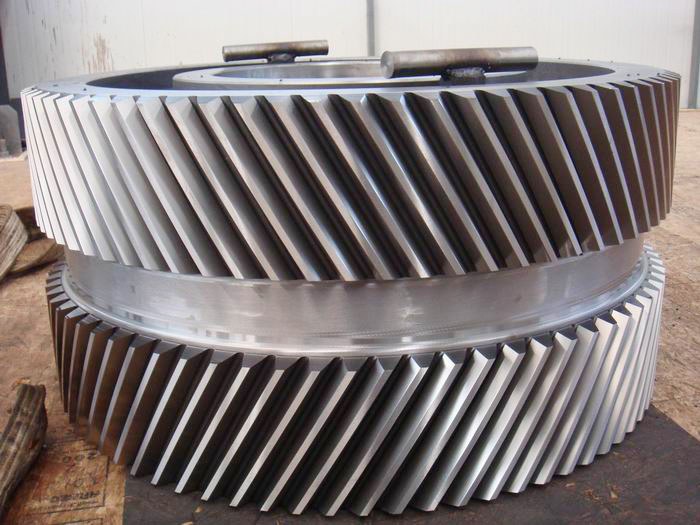

A standard helical gear improves meshing by placing its tooth trace at an angle to the gear axis, but that geometry also produces axial thrust. In small systems the thrust can often be handled with matched bearings, yet in medium-heavy and heavy-duty drives it becomes a design burden. A double helical gear places two helical sections with equal helix angles and opposite directions on the same axis, allowing the axial forces to oppose each other.
This thrust-balanced structure is valuable where shaft position, bearing life, and housing stiffness affect transmission reliability. It can reduce the need for additional thrust-bearing capacity while preserving the smooth engagement associated with helical gears. That is why the format is often considered for medium-high speed and medium-heavy load working conditions.
Smooth Meshing, Noise Control, and Load Sharing
The meshing advantage comes from gradual tooth contact. Instead of a sudden full-width impact, multiple teeth can share load as contact moves along the flank. This helps reduce vibration, impact noise, and peak stress, especially when torque is not perfectly steady.
Compared with a simple spur gear, helical geometry can provide smoother running and higher load-carrying capacity. Local knowledge materials for YIZHI MACHINERY describe helical gears as suitable for medium and high-speed operating conditions, with transmission efficiency reaching 96%-99% in applicable scenarios. Double helical geometry builds on that behavior while addressing the axial thrust that a single helical gear creates.
Double Helical Gear Materials and Manufacturing Details
Material Options for Demanding Transmission
Material selection should begin with the real load spectrum, not only nominal torque. Information for double helical gears includes 20CrMnTi, 42CrMo, 20CrNiMo, and 40CrNiMo as material options. These steels are relevant because heavy-duty gearing needs a balance of core strength, surface durability, and response to heat treatment.
For machinery exposed to repeated load cycles, overload events, or continuous operation, the material must work with the tooth geometry rather than simply survive static stress. Strength, hardness, wear resistance, and toughness all matter because flank fatigue and root fatigue are different failure paths. YIZHI MACHINERY also identifies high-grade steel and alloy materials as part of its approach to gear transmission components.
Milling, Heat Treatment, Grinding, and Inspection Priorities
For a custom double helical gear, key product parameters include module mn from 3 to 20, helix angle up to 45 degrees, milling as a machining process, and quenching treatment. These details give engineers a practical specification frame without pretending that one catalogue size fits every gearbox. Whole parts and assembly parts are also available, which is useful when the gear must integrate with a shaft, hub, or matched transmission set.
Precision depends on more than cutting the teeth. The broader manufacturing capability described includes hobbing, shaping, grinding, broaching, keyway machining, internal and external cylindrical grinding, honing, heat treatment, milling, and drilling. Inspection should focus on dimensions, tooth profile, tooth trace, pitch, surface roughness, and tooth contact accuracy because small errors can become large vibration problems under load.
The double helical gear product information is most useful when those parameters are reviewed together with duty cycle, shaft arrangement, lubrication, and housing stiffness.
Where Double Helical Gears Deliver the Most Value
Reducers, Compressors, Marine Propulsion, and Machine Tool Spindles
A double helical gear is most persuasive when the drive must transmit meaningful load while maintaining smooth motion. Industrial applications also benefit from customized geometry. Agricultural equipment may need durability and adaptability, mining machinery may prioritize heavy load and wear resistance, pump systems may require stable efficiency, and power tools may need high-frequency precision control. In each case, the gear form should match the mechanical environment rather than follow a generic preference.
When Herringbone Gear or Single Helical Gear May Be Considered

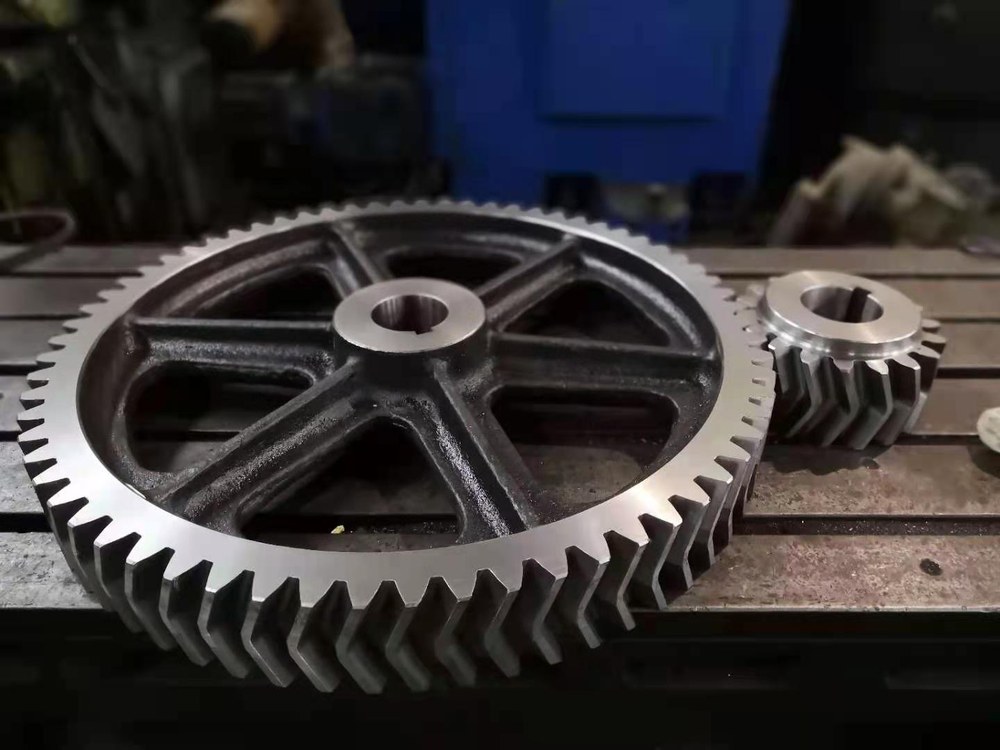

The search comparison between herringbone vs double helical gear is popular because the two forms look similar but are not identical. A herringbone gear has a continuous V-shaped tooth form without a central relief groove, while a double helical gear is commonly understood as two opposite helical sections arranged coaxially.
A single helical gear can still be a strong choice when the axial thrust is acceptable and the application does not require a self-balanced arrangement. It is often easier to manufacture and inspect than more complex paired helix structures. The double helical gear becomes more attractive when axial force balance, load capacity, and long-running stability are central design requirements.
How to Specify a Custom Double Helical Gear
Module, Helix Angle, Precision, and Surface Requirements
A useful specification starts with module, helix angle, number of teeth, face width, material, heat treatment, bore or shaft interface, and required accuracy. For the double helical gear range, module mn from 3 to 20 and helix angle up to 45 degrees provide a starting point. The final design should also define surface treatment, hardness expectations, inspection criteria, and mating gear requirements.
Matching Gear Geometry to Real Load Conditions
A custom gear manufacturing project is strongest when the drawing and the working conditions are treated as one problem. Load direction, duty cycle, shock load, lubrication path, shaft support, gearbox housing stiffness, and operating temperature all influence the tooth contact pattern. A technically sound double helical gear specification should leave enough information for the manufacturer to judge whether the proposed geometry is manufacturable and durable.
YIZHI MACHINERY fits this scenario as a custom manufacturing partner for gear transmission components and mechanical parts. Its scope covers spur gears, helical gears, bevel gears, worm gear drives, internal gears, gear shafts, machined parts, bolts, and collars. The value is connecting material, machining, heat treatment, and inspection to transmission duty.
Conclusion
A double helical gear is a practical answer to heavy-duty transmission problems where smooth meshing, axial thrust balance, load distribution, and precision control must work together. Its value appears most clearly in reducers, compressors, marine propulsion, machine tool spindle systems, and other applications where one weak detail can create vibration, wear, or bearing stress. When material selection, heat treatment, milling, grinding, and inspection are aligned, the design becomes more than a gear shape; it becomes a reliability strategy.
Explore custom gear manufacturing solutions from YIZHI MACHINERY to match double helical gear design with real operating conditions.
FAQ
Q: What is the main advantage of a double helical gear?
A: The main advantage is axial thrust balance. Two opposite helix directions work against each other, allowing the gear to keep the smooth meshing benefits of helical teeth while reducing thrust load on the bearing system. This is especially useful in heavy-duty drives where stability and compact design matter.
Q: How is a double helical gear different from a herringbone gear?
A: A double helical gear usually has two opposite helical sections arranged on one gear body, often with a center relief area. A herringbone gear has a continuous V-shaped tooth form. Both can balance axial thrust, but herringbone gears are generally more difficult to manufacture.
Q: What parameters should be prepared before specifying a custom double helical gear?
A: Engineers should prepare module, helix angle, tooth number, face width, material, heat treatment, bore or shaft interface, accuracy grade, and application conditions. Load cycle, lubrication, operating speed, shock load, and housing stiffness also help the manufacturer align gear geometry with real service conditions.
