Understanding the Fundamentals of Gears and Shafts
The Mechanical Relationship Between Gears and Shafts

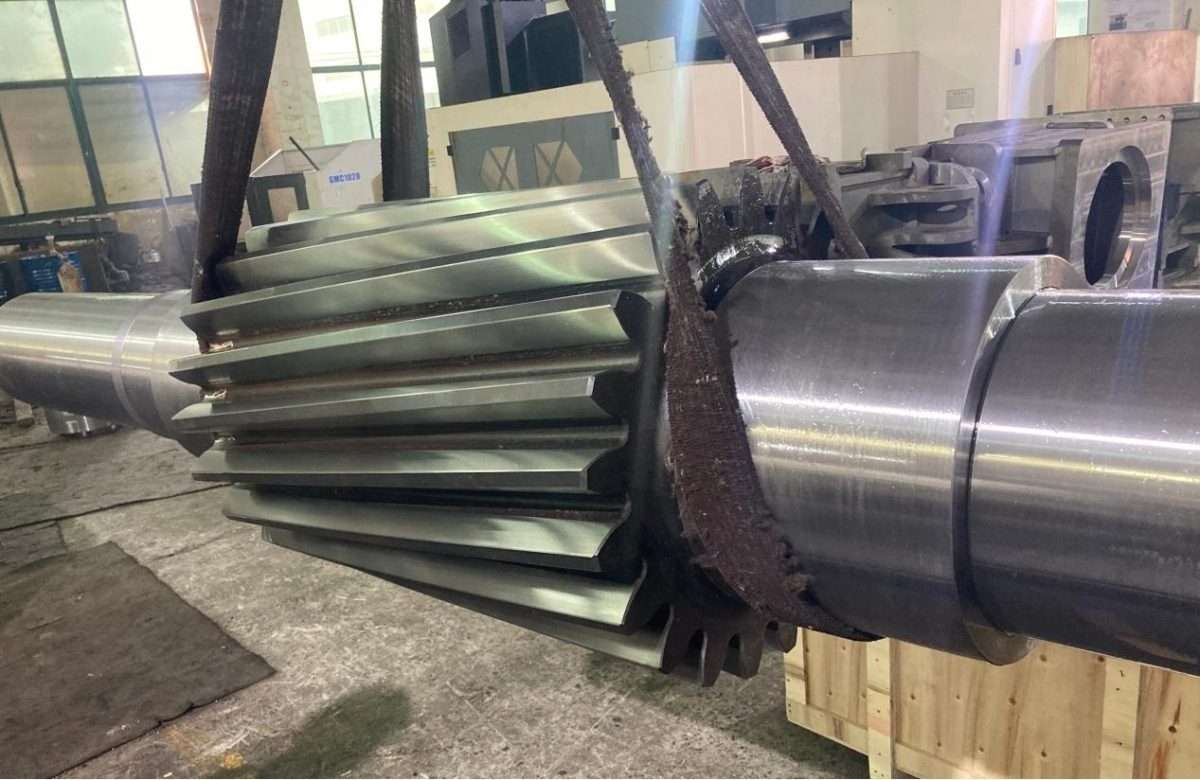

Gears and shafts form the backbone of mechanical transmission systems. They work together to convert torque and rotational motion across machinery. A gear shaft integrates the functional geometry of gears directly onto a shaft body. This results in compactness and high transmission precision. A mechanical transmission component integrates gears and shafts into a single piece. Gear tooth profiles are machined directly onto the shaft body. No additional gear assembly is required. The alignment between these components determines smooth torque transfer. Material composition influences strength and fatigue resistance.
When properly aligned, a drive shaft gear ensures consistent load distribution across contact surfaces. Misalignment or wear can induce torsional vibration. This leads to premature failure in connected systems. High-quality material selection, precision manufacturing processes and professional heat treatment technology allow YIZHI MACHINERY products to meet the durability and stability requirements under harsh working conditions. Examples include mining heavy loads and extreme operating environments. This synergy between design precision and material integrity defines long-term reliability in power transmission assemblies.
Types of Gear Shafts and Their Applications
Various gear types are used depending on torque, speed ratio, and operational environment. Parallel spur gears provide simplicity for low-speed applications. Helical gears deliver smoother meshing with higher load capacity. Helical gears offer smooth meshing with low impact and noise. Their load-carrying capacity is 30%-50% higher than spur gears. For intersecting shafts, bevel or spiral bevel gears transmit motion efficiently at 90° angles. Worm gear sets are suitable for high reduction ratios with self-locking features.
The integration of these gears into a single gear shaft enhances rigidity. It also reduces energy loss from assembly errors. High transmission efficiency occurs with no energy loss caused by assembly errors. High rigidity allows the assembly to withstand large torque and load. The assembly process becomes simplified. The number of parts decreases and the failure rate lowers. YIZHI MACHINERY’s customized manufacturing covers all these configurations through advanced machining processes. These processes include hobbing, grinding, shaping, and CNC operations. They achieve ISO 1328 Grade 6–8 precision standards.
Common Failure Modes in Gears and Drive Shafts
Wear Mechanisms Affecting Gear Performance

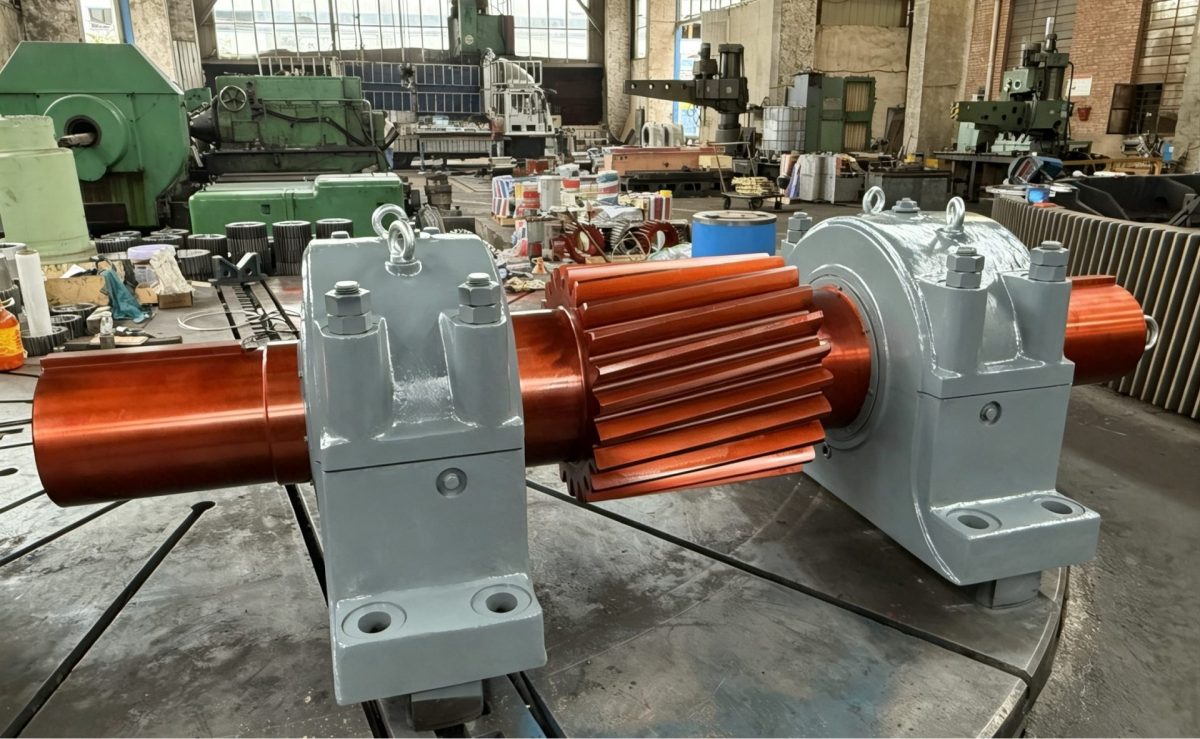

Gears experience multiple wear mechanisms under cyclic loading. Surface fatigue manifests as pitting or spalling when microcracks propagate due to repeated stress cycles. Abrasive wear arises from contamination or insufficient lubrication film thickness. This allows asperity contact between mating teeth. Scuffing occurs under high temperature or load when boundary lubrication fails entirely.
To mitigate these effects, YIZHI MACHINERY applies carburizing, quenching, induction hardening, and surface treatments. Examples include phosphating or shot peening. These improve hardness and corrosion resistance. YIZHI MACHINERY provides a complete range of heat treatment and surface treatment services. These include carburizing and quenching, quenching and tempering, and induction hardening. The goal is to improve hardness and wear resistance. Surface treatments such as galvanizing, blackening, phosphating, and shot peening enhance corrosion resistance.
Typical Shaft Degradation Patterns
Drive shafts are prone to torsional fatigue cracks. These initiate at geometric stress concentrators such as keyways or fillets. Corrosion also weakens structural integrity over time in humid or chemically active environments. Bending fatigue results from misalignment or unbalanced loading conditions during operation.
YIZHI MACHINERY combats these issues through rigorous inspection protocols. These cover dimensions, tooth profile accuracy, hardness uniformity, and surface finish quality. A dual quality control system of routine workshop inspection and professional laboratory analysis is implemented. This covers all core parameters including dimensions, tooth profile and hardness.
Advanced Diagnostic Techniques for Gear Systems
Vibration Analysis for Gear Condition Monitoring

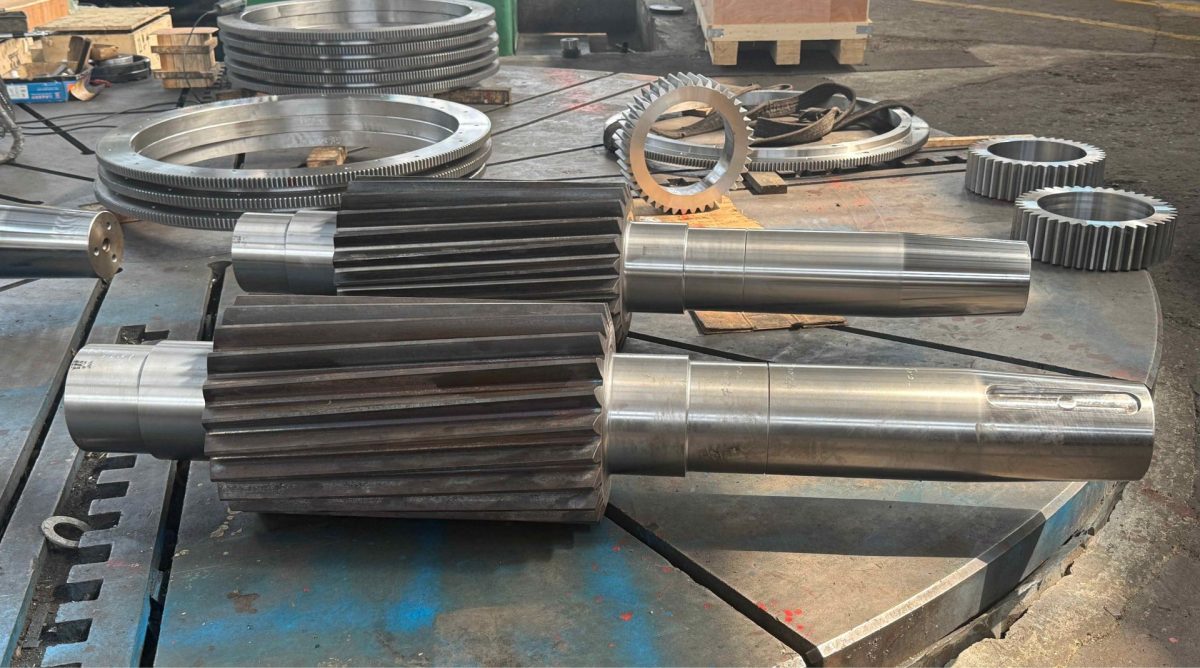

Vibration analysis remains one of the most effective predictive maintenance tools. It helps identify early-stage faults in gear systems. Frequency spectrum analysis isolates gear mesh frequencies. Sidebands indicate tooth wear or eccentricity. Time waveform analysis detects transient events. Examples include broken teeth or impact loads during rotation.
For high-precision assemblies like those produced by YIZHI MACHINERY, where tolerances reach micrometre-level accuracy, vibration monitoring helps maintain optimal performance. This applies across heavy-duty applications such as mining drives or metro propulsion units.
Acoustic Emission Testing in Gear Diagnostics
Acoustic emission testing captures high-frequency stress waves. These are generated by crack initiation or pitting before visible damage occurs. This real-time monitoring technique allows maintenance teams to intervene proactively without dismantling assemblies. However, interpreting acoustic data requires filtering algorithms. These differentiate true defect signals from ambient mechanical noise sources.
Diagnostic Methods for Drive Shaft Health Assessment
Torsional Vibration Measurement Techniques
Torsional vibration sensors mounted on shafts measure angular velocity variations under load conditions. Spectral analysis identifies imbalance or coupling faults. These could lead to resonance-induced failures in drive shaft gear assemblies. Phase analysis further assists in detecting stiffness degradation caused by material fatigue.
In complex machinery such as industrial compressors or marine propulsion systems, where YIZHI MACHINERY’s gear shafts are widely applied, torsional diagnostics ensure sustained torque delivery without oscillatory disturbances.
Non-destructive Testing (NDT) for Shaft Integrity Evaluation
Ultrasonic testing employs pulse-echo methods to detect subsurface flaws. Examples include inclusions or internal cracks without disassembly. This technique provides depth information about defect location within metallic shafts made from alloy steels used by YIZHI MACHINERY’s production lines.
Magnetic particle inspection effectively reveals surface discontinuities around keyways or splines. Stress concentration occurs most frequently at these locations. Under controlled lighting conditions, MPI visualizes fine cracks invisible to the naked eye. This is critical for ensuring safety in rotating equipment subjected to cyclic torsion loads.
Emerging Technologies in Gear and Shaft Diagnostics
Smart Sensors and IoT Integration
Modern diagnostic frameworks integrate smart sensors directly into gears and shafts for continuous condition tracking. Embedded devices monitor vibration amplitude, temperature rise, strain levels, and lubrication status throughout operation cycles. IoT connectivity enables real-time data sharing with centralized maintenance control centers. Predictive analytics determine service intervals dynamically based on actual usage patterns rather than fixed schedules.
YIZHI MACHINERY’s adoption of digital monitoring aligns with its customer-centric philosophy. This emphasizes efficiency-driven management principles that prioritize reliability enhancement through intelligent feedback loops.
Digital Twins for Virtual Condition Simulation
Digital twin technology allows engineers to simulate dynamic responses between interacting components under variable load conditions before physical testing begins. These virtual replicas help refine design geometries of drive shaft gear assemblies while minimizing prototyping costs.
Predictive simulations evaluate how degradation patterns evolve over time under specific stress regimes. This enables maintenance intervals to be tailored precisely to operational realities rather than generalized assumptions.
Conclusion
Comprehensive understanding of gears and shafts from design fundamentals through diagnostic technologies is vital for maintaining mechanical integrity across industries. These include mining, metro transport, agriculture, pumps, and power tools. Products serve six core sectors including agriculture, industry, mining, metro systems, pump manufacturing and power tools. Through advanced manufacturing techniques like hobbing, grinding, heat treatment combined with full-chain quality control systems, YIZHI MACHINERY has cultivated expertise in precision OEM manufacturing. This offers customized end-to-end gear solutions tailored to clients’ core requirements regarding gear type dimensions materials precision.
For expert consultation on optimizing your drive shaft gear performance through custom engineering solutions, contact us today.
