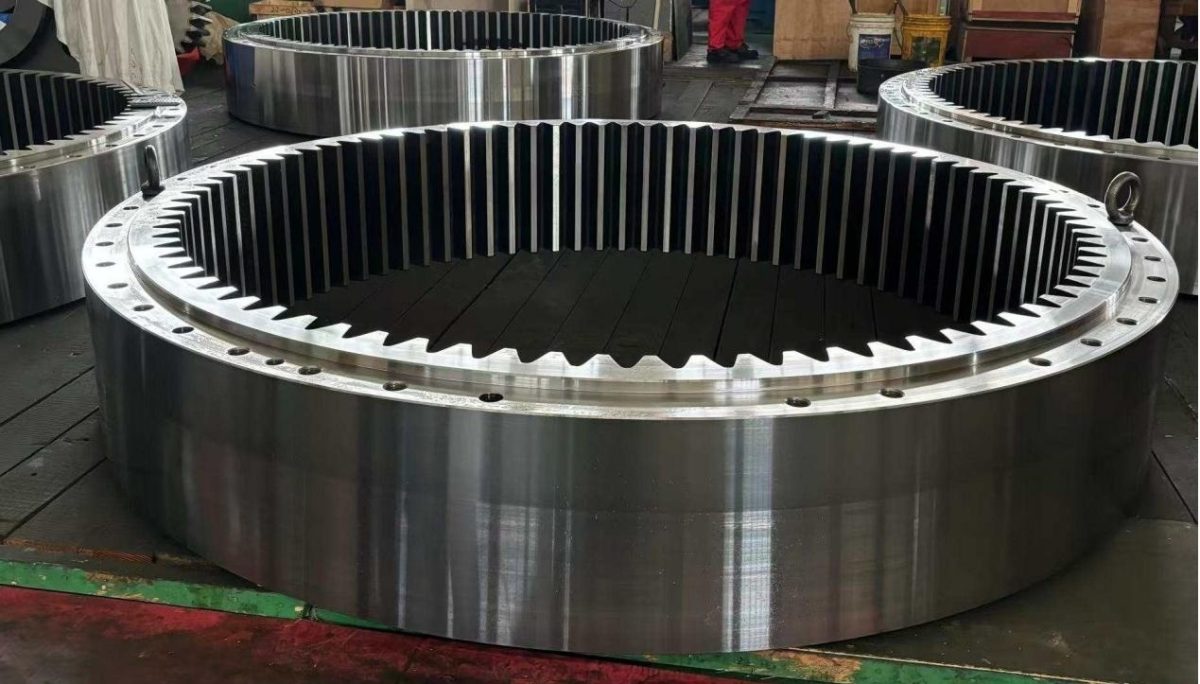

Choosing the correct gear architecture is a fundamental decision in mechanical design that impacts the footprint, efficiency, and durability of a power transmission system. Whether designing for heavy industrial applications or compact robotic joints, understanding the nuances between an external gear and an internal gear is essential for engineering success. YIZHI MACHINERY specializes in the precision manufacturing of both architectures, providing customized solutions that meet the stringent requirements of global industries.
What is an External Gear and Where Is It Used?
The most common gear structure found in mechanical systems is the external gear, which features teeth machined on the outer circumference of a cylinder or disk. These components rotate on parallel shafts and are the primary building blocks for most reduction gearboxes and motor drives.
Defining the Standard External Gear
An external gear typically follows the involute tooth profile, which ensures smooth rolling power transmission by keeping the points of tangency on a common tangent line of the base circle. The teeth can be designed as spur gears, where the profiles are parallel to the axis, or helical gears, where the tooth traces are inclined at an angle. For applications requiring high precision and no axial force, spur gears are the preferred choice due to their simple structure and mature processing technology.
Why Is the External Gear the Most Popular Choice?
Simplicity and accessibility drive the widespread adoption of external gearing. These gears are easier to manufacture, inspect, and maintain compared to internal types. In mass production, maintaining precision control and consistency is straightforward, with transmission efficiency reaching between 95% and 99% in low- to medium-speed scenarios. YIZHI MACHINERY produces these components for a wide range of applications, including agricultural machinery, light industry packaging equipment, and household appliance transmission systems.
What is an Internal Gear and Its Unique Design?

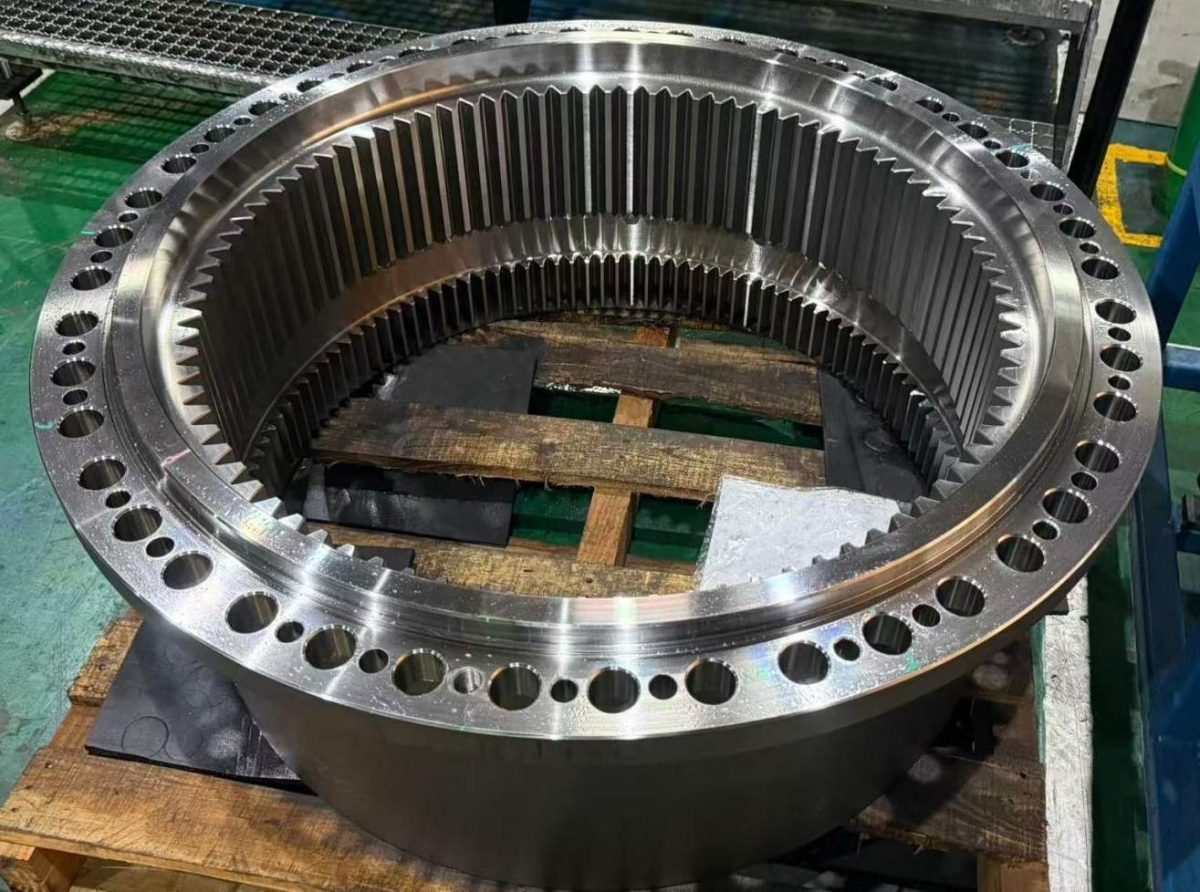

An internal gear represents a specialized design where the tooth profiles are machined on the inner wall of a hollow cylindrical body. This configuration is used in conjunction with a smaller external gear to form an internal meshing transmission mechanism.
Understanding the Internal Ring Gear Structure
The structural layout of an internal ring gear is essentially the reverse of a standard external component. Because the teeth point inward, the distance between the shaft centers is significantly reduced compared to an external gear pair of the same ratio. This allows for a much more compact assembly, which is vital for space-constrained environments.
Why Use an Internal Gear Instead of an External One?
The primary advantage of the internal gear is its exceptional space utilization and stability. Due to the concave-convex nature of the meshing teeth, the overlap coefficient is larger than that of external pairs. This results in more teeth being in contact simultaneously, which enhances load-carrying capacity and significantly reduces operational noise and vibration. For industries like metro transmission systems or high-torque winches, these characteristics ensure long-term reliability under constant stress.
Key Differences: External and Internal Gear Comparison
Deciding which architecture to implement requires a deep dive into the functional differences that separate these two gear types.
How Does the Rotation Direction Change?

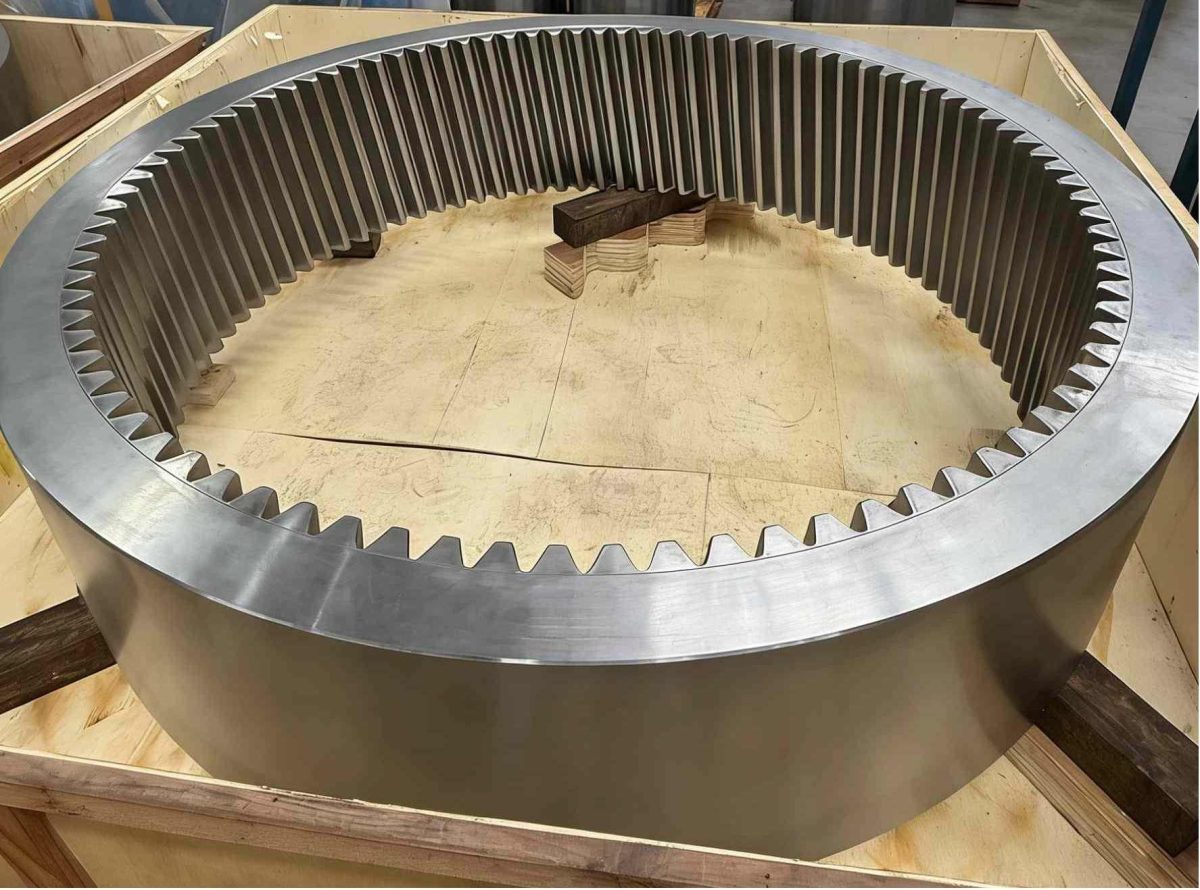

One of the most immediate functional differences lies in the direction of rotation. When a pair of external gears mesh, they rotate in opposite directions. However, in an external and internal gear set, both components rotate in the same direction. This characteristic is particularly useful in specific mechanical linkages where maintaining a consistent rotational direction across the transmission stage is required.
The Battle of Space and Transmission Ratios
Internal gears are the cornerstone of planetary gear devices. By housing the sun gear and planetary gears within an internal ring gear, engineers can achieve extremely high reduction ratios within a very small volume. This miniaturization capability is far superior to what can be achieved with external gear trains, making internal gearing the standard for precision instruments and robot joints.
Manufacturing Complexity: Why Internal Gearing is Harder?
The production of an internal gear involves higher technical hurdles. One common challenge is tip interference, where the crests of the internal and external teeth may collide if the difference in the number of teeth is not carefully managed. Furthermore, while external gears can be easily hobbed, internal teeth often require specialized gear shaping, broaching, or internal grinding processes. YIZHI MACHINERY utilizes advanced CNC gear shaping and grinding equipment to ensure these complex profiles meet ISO Grade 5-8 standards.
How to Choose the Right Solution for Your Industry?
The choice of gear depends largely on the operating environment and the specific performance goals of the machinery.
Best Scenarios for Internal Ring Gear Sets
High-torque, compact applications are where the internal ring gear excels. It is the preferred solution for planetary gear reducers used in heavy-duty hoisting equipment and metro systems. For instance, providing core gear components for rail transit requires high-performance alloy steel to enhance surface hardness and core strength, ensuring safety during high-frequency operation.
When to Stick with Traditional External Gearing?
Standard external gearing remains the best choice for general industrial machinery where space is not the primary constraint. Mining machinery often utilizes large external gears, such as double helical or herringbone gears, to handle extreme loads and high wear. These gears are easier to cool and lubricate in harsh environments, making them ideal for large rolling mills and mining equipment.
Conclusion
In the comparison between the internal gear and the external gear, there is no universal winner; rather, there is a right tool for every specific engineering challenge. External gears offer simplicity and cost-effectiveness for general transmission, while internal gear sets provide the compactness and stability required for high-performance planetary systems. By focusing on material excellence and micrometer-level precision, engineers can optimize their mechanical systems for maximum efficiency.
For customized gear solutions tailored to your industry’s extreme conditions, please contact us.
FAQ
Q: How does an internal gear improve the compactness of a planetary gearbox?
A: An internal gear allows the planetary and sun gears to be contained within its inner circumference, significantly reducing the center distance between shafts compared to external gear trains. This architecture, provided by YIZHI MACHINERY, enables high reduction ratios in a miniaturized housing.
Q: Why is an external gear easier to maintain in mining machinery?
A: An external gear is more accessible for inspection, lubrication, and replacement in the field. In heavy-duty mining environments, the ability to quickly service gear components is crucial for minimizing downtime, which is why many large-scale industrial reducers utilize external architectures.
Q: What is the primary cause of noise in an internal ring gear assembly?
A: Noise is typically caused by tooth profile errors or poor tooth contact. However, because an internal ring gear has a higher overlap coefficient than an external gear, it is naturally quieter. YIZHI MACHINERY utilizes final finishing and grinding to further eliminate pitch errors and ensure silent operation.
Q: Can YIZHI MACHINERY produce high-precision gears for extreme loads?
A: Yes, using materials such as 42CrMo and through heat treatment processes like carburization, YIZHI MACHINERY is able to manufacture gears that can achieve ISO 5-8 grade precision. These parts are deliberately made to be tough enough to operate under harsh mining, metro, and heavy industrial environments.
Q: What happens when an external and internal gear mesh?
A: When an external and internal gear mesh, they rotate in the same direction, unlike a pair of external gears, which rotate in opposite directions. This meshing also provides a larger contact area, which enhances the torque transmission capability and reduces the wear on individual tooth surfaces.
