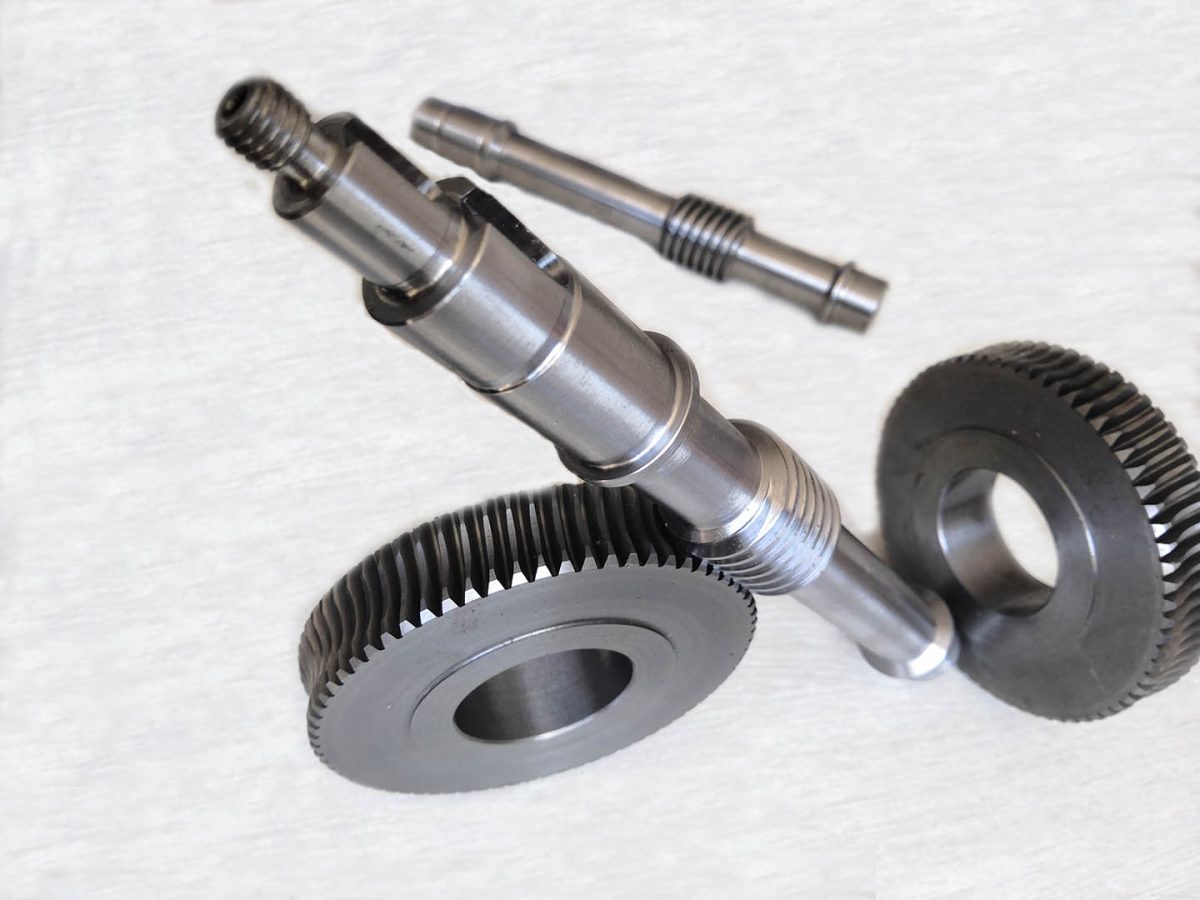

High-torque transmission systems need careful heat control. In gear setups where the shafts cross at right angles, the way power moves differs from straight-shaft designs. The worm gear and shaft sit at the center. They use a sliding contact that gives large speed reduction and self-locking, yet this sliding also creates strong friction. Good lubrication of the worm shaft is not a routine task; it is a basic requirement for long service life and for stopping sudden overheating.
Why Heat Management is Critical for Worm Gear and Shaft Systems
Power moves through a worm gear set by a screw-like action. This differs from the rolling contact seen in spur or helical gears. The sliding motion puts special loads on the parts.
How relative sliding speed generates thermal stress
High friction loss marks worm gear drives. The relative sliding speed between tooth surfaces stays high. The worm shaft keeps sliding across the worm wheel teeth. This turns part of the input power into heat. The effect grows stronger in high-ratio units from 10:1 to 80:1. If the heat is not carried away by proper lubrication, oil viscosity falls. The oil film breaks down and metal touches metal.
What failure modes arise from poor lubrication
When heat balance in a worm gear shaft is lost, several problems can appear.
· Scuffing and Galling: In enclosed drives with weak heat removal, high temperature can weld and tear tooth surfaces. This is called adhesion.
· Pitting: Long heat stress weakens the surface. Fatigue pits form, especially when the worm gear is tin bronze.
· Accelerated Wear: In open drives or units with poor seals, weak lubrication removes material from the worm gear teeth. Service life of the whole unit drops.
What Technical Specifications Define a Robust Worm Shaft

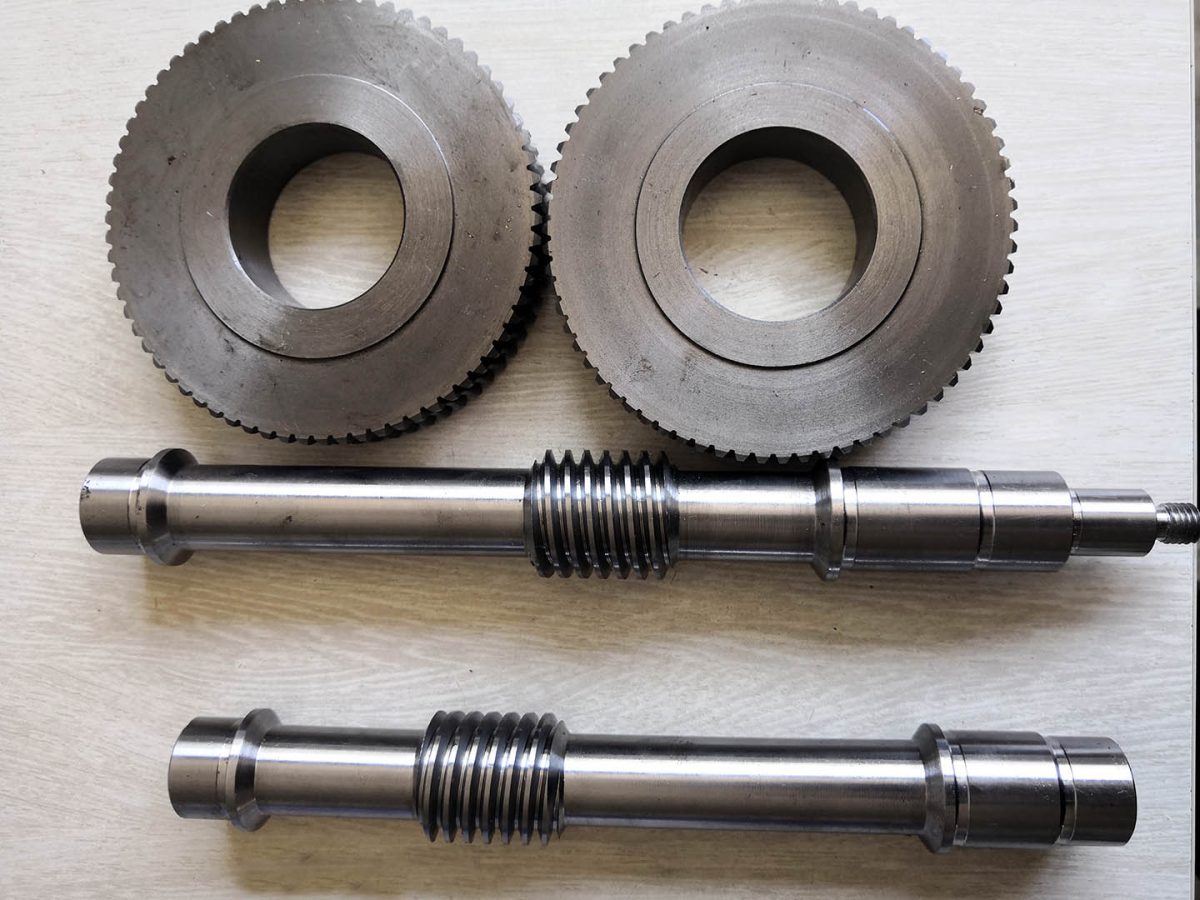

To cut heat problems in worm drives, the worm shaft must be made to tight standards. YIZHI MACHINERY works on precise machining to lower baseline friction before lubrication begins.
Why high-grade alloy steel selection is foundational
Material choice for the worm shaft decides how long the part lasts. Standard builds often use high-quality carbon steel or alloy steel for core strength. Common grades are listed below.
· 20Cr or 20CrMnTi: Good for high-speed, heavy-load work. Carburizing and quenching give a hard surface and a tough core.
· 40Cr or 45 Steel: Fit for low-speed, light-load use after quenching or tempering.
· ZCuSn10P1 (Tin Bronze): Used for the matching worm gear ring. It gives strong resistance to galling and lowers friction.
How precision grinding and heat treatment enhance durability
Making a high-performance worm gear shaft follows several steps. After rough cutting, the part receives final heat treatment such as induction hardening to reach the needed HRC level. Precision grinding comes next. YIZHI MACHINERY uses GMM-Micrometer checks to hold tooth accuracy at ISO 1328 Grade 5 to 8. Smoother teeth lower the starting friction value and cut the heat produced during running.
How to Implement Effective Lubrication Strategies

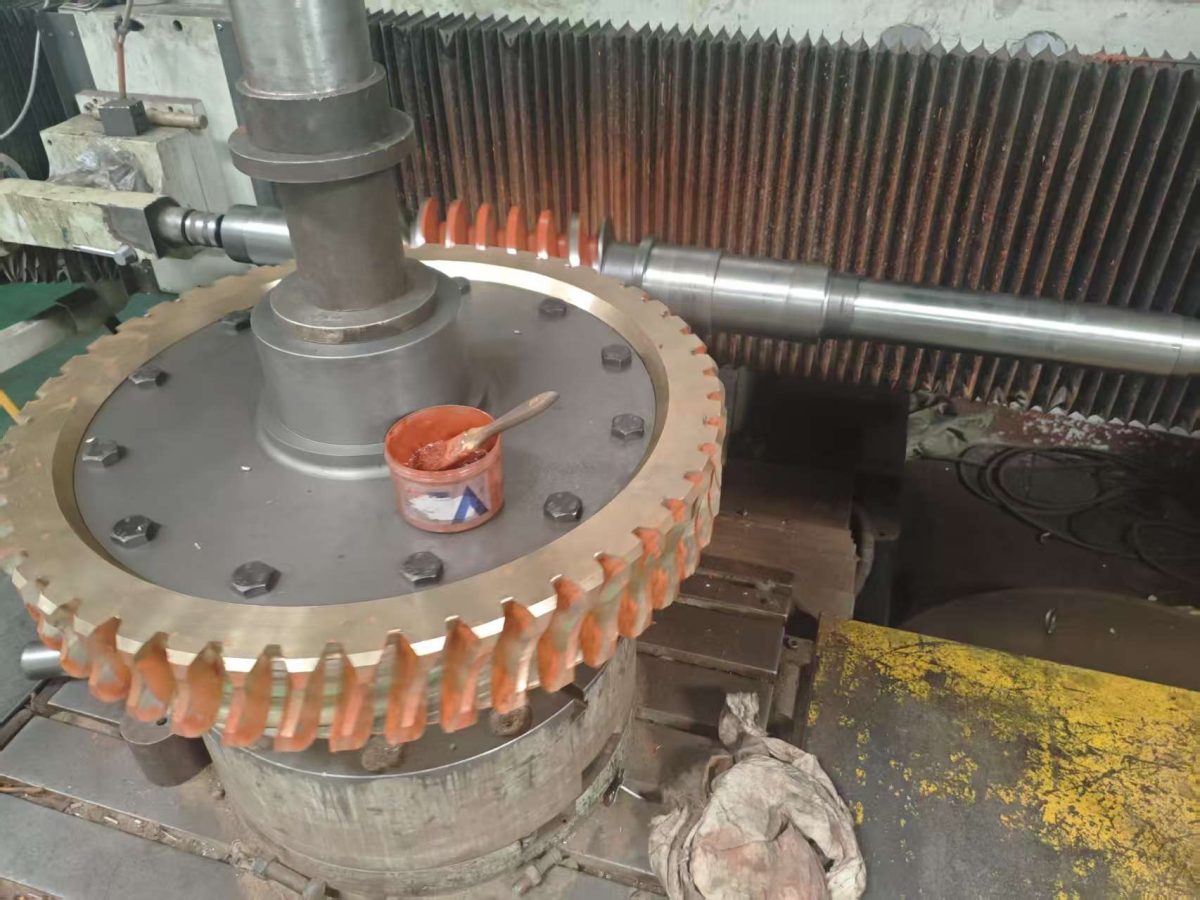

The right lubrication method depends on sliding speed and gear layout. Correct use keeps a steady oil film on the worm shaft.
Why oil bath lubrication depth matters for the worm shaft
Oil bath lubrication is common in many reducers. The position of the worm shaft sets the needed oil level.
· Bottom-mounted worm: Oil depth should reach about one tooth height of the worm. Too much oil raises churning losses and can add more heat.
· Top-mounted worm: The worm wheel should dip 1/6 to 1/3 of its outer diameter into the oil. This lets enough oil splash onto the worm.
When to utilize oil injection for high-velocity applications
When worm shaft speed passes 4 m/s, splashing alone may not keep a steady oil film. Oil injection lubrication works better. A pump sends a steady stream of cooled oil to the contact zone. The flow lubricates and cools at the same time, moving heat from the contact area to a tank or cooler.
Why Material Pairing Dictates Long-Term Reliability
The link between worm shaft and worm gear depends on material match. Failure usually starts on the softer part, so attention goes to the worm wheel’s resistance to scuffing and wear.
What makes the tin bronze and hardened steel synergy effective
Shop experience shows that a hardened, ground steel worm shaft with a tin bronze gear ring gives the best anti-galling result. Tin bronze resists adhesive bonding even at high sliding speeds. Aluminum bronze or gray cast iron can serve in slower work, below 2 m/s or 8 m/s, but the bronze-steel pair remains the first choice for heavy mining, metallurgy, and lifting machines.
Why industry leaders trust YIZHI MACHINERY for heavy-duty solutions
Several examples show the value of these methods.
· TechDrive Solutions: This industrial machinery maker has bought precision gears from YIZHI MACHINERY for more than three years. The parts have raised running efficiency even when temperatures stay high.
· Viktor Tsurkan: This well-known maker needed gears with very tight tolerances. YIZHI MACHINERY supplied custom parts that met the strict needs and gave steady performance in demanding work.
· Precision Motion Systems: This automation company added high-performance gears to its motion systems. Better heat stability cut downtime and raised output.
Conclusion
Stopping overheating in worm drives calls for a full plan. It starts with precise machining and ends with careful lubrication control. High-grade steel for the worm gear and shaft, plus strict grinding and heat treatment, lowers starting friction. When this is paired with the right oil bath depth or injection cooling, the parts run at peak output in mining, metallurgy, and other fields. YIZHI MACHINERY keeps a steady focus on quality and on giving practical answers to heat problems.
If you need high-precision transmission parts or custom gear work, please contact us to talk about your exact needs.
