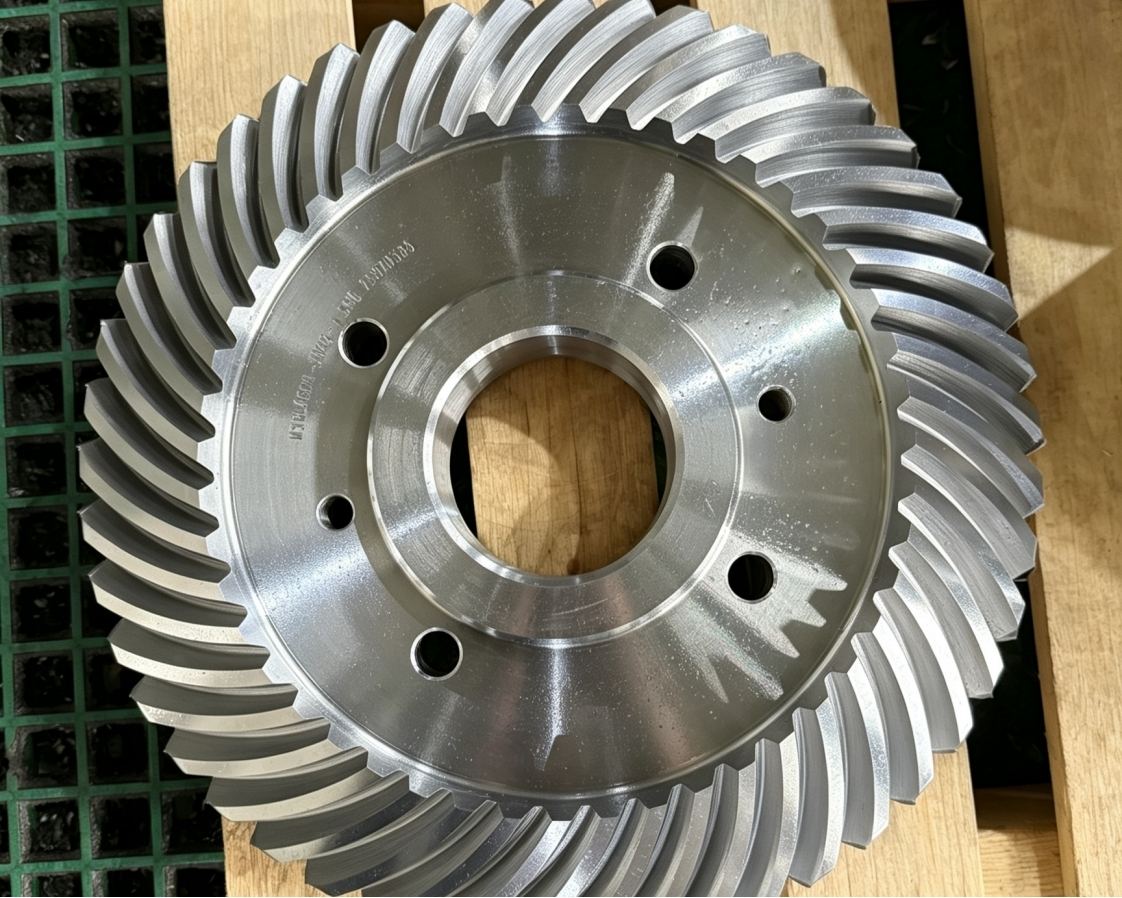

Efficiency in power transmission is critical for the optimal performance of heavy industrial machinery. Intersecting shafts demand specific mechanical solutions, such as the spiral bevel gear that significantly outperforms straight-cut gears. A spiral bevel gear has curved tooth traces and a helical tooth surface, enabling smooth transfer of large torques. To achieve higher levels of precision and reduced noise in their industries, engineers are turning to more advanced gear designs.
YIZHI MACHINERY is able to design and manufacture these critical components. By marrying precise engineering with high-quality raw materials, YIZHI MACHINERY is able to facilitate customers’ move to high-performance transmission systems and become their strategic partner.
What Makes the Spiral Bevel Gear the Preferred Choice for Heavy-Duty Applications?
How Curved Teeth Traces Enhance Load-Carrying Capacity
The main advantage of the spiral bevel gear is its special tooth design. Compared to straight bevel gears, where all teeth engage at the same time, the teeth of a spiral bevel gear engage step by step. So, more teeth are involved in the transmission of force than at any given time with straight bevel gears. This means that the spiral bevel gear, due to its special design, is able to transfer loads of up to 20% to 40% better than straight bevel gears. That is why this kind of gear is used in many pieces of heavy machinery. In addition, the curved tooth traces of a spiral bevel gear allow for a larger contact surface between individual teeth. This leads to a uniform pressure distribution on the gear teeth. Thus, the risk of tooth breakage or wear is minimized.
Achieving Silent Operation: Why Smooth Meshing Matters
Modern industries are constantly seeking solutions to reduce noise in their production environments, particularly where there is a high level of activity. The helical tooth profile of the spiral bevel gear allows for a smooth engagement between teeth, resulting in a low level of impact and running noise. The gear’s performance is particularly effective at medium to high speeds and is particularly suited to applications such as helicopter transmissions or machine tool spindles. By reducing the frequency of vibration, the gear and surrounding mechanical components will not only be quieter in operation, but will also be subjected to less stress and, as a result, extend the life of the assembly.
Why Choosing the Right Spiral Bevel Gear Manufacturer is a Strategic Decision
Material Mastery: How Carburizing and Quenching Extend Gear Lifespan

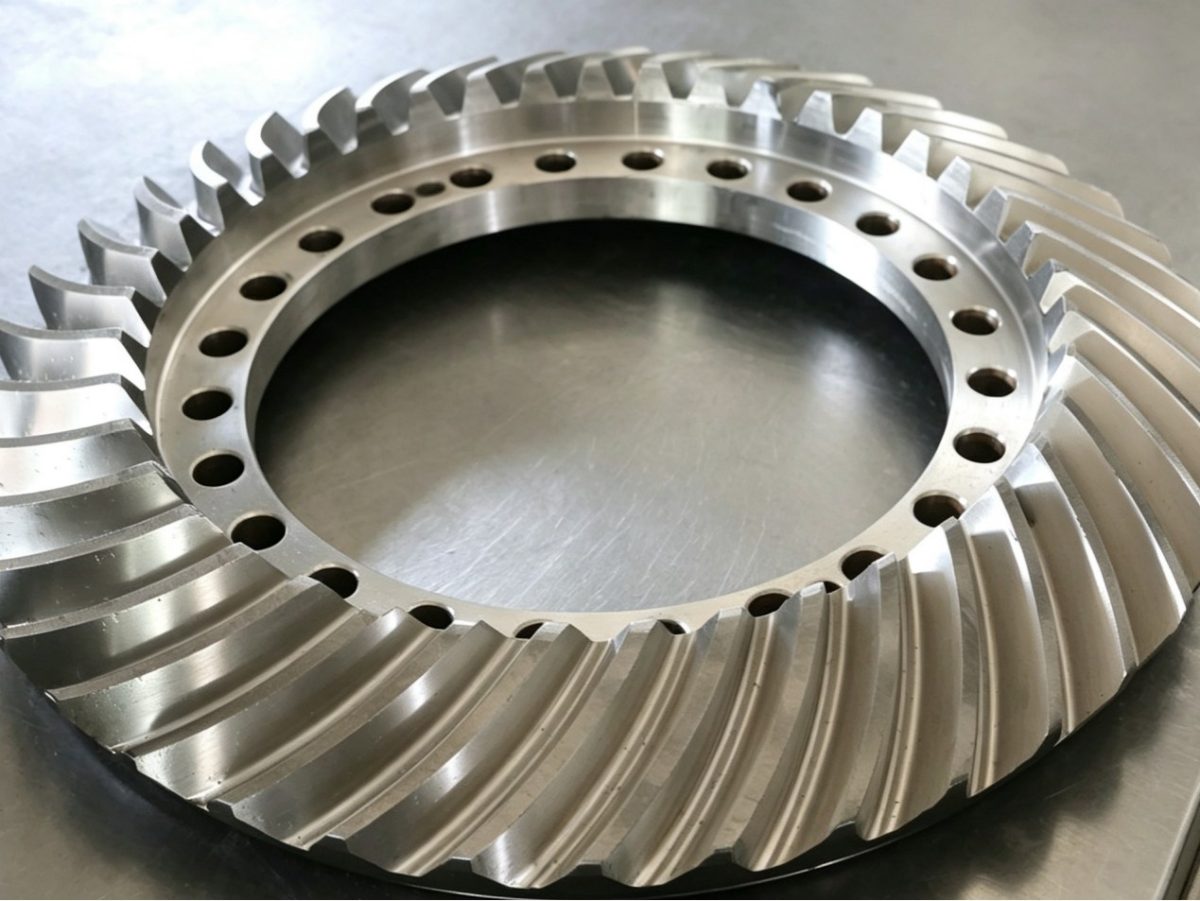

For optimal life of a gear, the heat treatment is as important as the design of the gear. Professional spiral bevel gear manufacturers select the highest quality of alloys, e.g., 20CrMnTi, 17CrNiMo6, 20CrNi2Mo or 42CrMo for basic strength. However, in order to achieve a longer life of the gears, manufacturers perform specialized heat treatment processes, such as carburizing and subsequent quenching. In case hardening, the surface of the gear is enriched with carbon. As a result, a gear gets an extremely hard, wear-resistant, and tough core, able to absorb shock and other forces. Components for mining and for metro systems are subjected to the highest forces, most of them being of abrasive nature and with high impact. Therefore, the above-mentioned processes are most critical.
Customization Capability: What “Solution-Based Sales” Means for Your OEM Needs
In B2B, one size does not fit all. At YIZHI MACHINERY, our sales approach is solution-based, providing full-spectrum personalization across dimensions, material, and precision. Whether there is a particular pressure angle required of 20 degrees or even a specific helix angle of 35 degrees, and whether large in dimension with a face width of up to 2 meters, we are able to tailor our production to meet the client’s main requirements. By producing high-quality gear transmission components that can be easily integrated into current mechanical designs, the components can enhance the performance of the overall mechanical design without the need for additional plant and equipment.
Industrial Impact: How Spiral Bevel Gear B2B Partnerships Drive Success
Mining and Metro: Withstanding Extreme Loads and Wear
A lot of heavy machinery in mining and in rail transport is operated in harsh environments on Earth. For us, it is important to make the spiral bevel gears reliable, so that our customers can work safely and productively. For metros, we need to make gears that can work in a constant and fail-safe manner at high frequency, whereas in the mining industry we need to drive the heavy-duty crushers and conveyors in which a lot of raw material is being transported on a daily basis. YIZHI MACHINERY uses high-performance alloy steel and makes the components with the utmost precision, in order to make them suitable for the toughest operating conditions.
Global Supply Chain Excellence: Why Regional Leaders Prefer Spiral Bevel Gear B2B Sourcing
Establishing a reliable spiral bevel gear b2b partnership is essential for maintaining a resilient supply chain. Global leaders such as Viktor Tsurkan and TechDrive Solutions have relied on these partnerships to secure high-quality components that meet their rigorous precision requirements. Long-term collaborations, often exceeding three years, prove that consistent quality and technical support are more valuable than short-term cost savings. These partners benefit from full-cycle services, including 24-hour consultation responses and a standardized OEM customization process that ensures timely delivery and perfect product adaptability.
Streamlining the OEM Process: From Demand Communication to Final Delivery
B2B efficiency can be achieved by breaking down the steps for custom-made products. Firstly, there is demand communication with sales and engineering. This is where detailed technical requirements are gathered, including the type of gear, size, and material required. This is then followed by in-depth design and drawings. High-quality production and processing then take place. This is then inspected for quality, checking for items such as dimensional accuracy and surface hardness. The products are then professionally packed to prevent any damage during international delivery. In order to reduce lead time, all steps are methodically done to guarantee that once the gears are received, they will work perfectly with the rest of the machinery.
Conclusion
Heavy machinery manufacturers are forced to include the latest spiral bevel gears in their products to gain leadership on the market. Such gear components have significantly greater load-carrying capacity, are quieter, and more efficient than other possible components for the transmission of heavy loads. In addition to the component itself, successful application requires a partnership of strategy with a producer who can deliver parts with a precision of microns, and who is able and willing to carry out even the smallest modifications to parts ordered by the customer. The demand for robust, high-performance transmission systems will continue to increase in all industries worldwide – including the traditional ones of mining and the new ones of the aerospace industry. Consequently, the field of application of specialized gear producers is becoming even more significant.
Get in touch with us for any custom gear and technical support!
FAQ
Q: What kind of materials does a spiral bevel gear manufacturer use for the heavy-duty gears?
A: For the heavy-duty spiral bevel gears, a professional spiral bevel gear manufacturer like YIZHI MACHINERY uses high-grade steel and alloys. The commonly used materials are 20CrMnTi, 17CrNiMo6, 20CrNi2Mo or 42CrMo etc. These kinds of materials can go through advanced heat treatment and are used to make the gears and other components that will be used in very harsh environments, like the mining, metro, etc., workplace.
Q: How can a spiral bevel gear b2b partnership improve equipment lifespan?
A: A spiral bevel gear b2b partnership improves equipment lifespan by companies with expert customization know-how and high precision grinding capability to make perfectly meshing gears with low internal stress. Case studies from partnerships with TechDrive Solutions show that high-quality gears perform under extreme loads for long periods without breakdown and hence result in long service life with minimum downtime.
Q: What are the typical dimensions and tolerances for a precision spiral bevel gear?
A: Typical tolerance for good quality spiral bevel gears is between ISO Grade 5 and 7. For very high precision, a specialized spiral bevel gear manufacturer can make gears of ISO Grade 5 accuracy. These would be produced using advanced CNC hobbing, machining, and grinding equipment to hold micrometer tolerances on all critical dimensions.
Q: How does YIZHI MACHINERY handle international logistics for Precision Gear Orders?
A: YIZHI MACHINERY has a standard process of OEM as above, professional anti-damage packaging, and good cooperation with a stable logistics agent. In this way, the high-precision parts made in China can be delivered to North America, Europe, and other places in good condition; the tooth profile and surface finish remain perfect all the time, never affected by long-distance delivery.
