Why do high-load industrial systems rely on the double helical gear design?

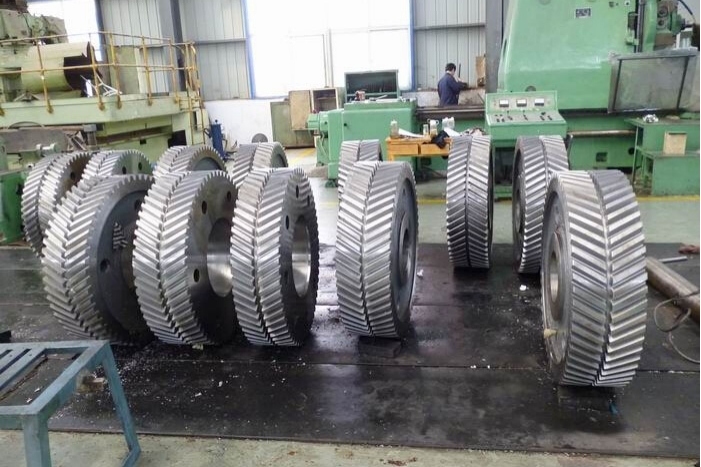

The modern industrial landscape demands power transmission components that can withstand immense torque while maintaining operational stability. Within this demanding environment, the double helical gear stands out as a critical solution for high-load drive systems. This specific gear configuration is defined by its coaxial composition, consisting of two helical gear sets with opposite helix directions and equal helix angles. This symmetrical design allows the mechanical forces to interact in a way that provides unique benefits for heavy machinery.
Unlike standard helical gears that generate significant axial thrust, the double helical gear application is primarily chosen because it provides a self-balanced axial force mechanism. By having two sets of teeth angled in opposite directions, the thrust generated by one side is directly offset by the other. This inherent stability eliminates the need for complex and expensive thrust bearings, simplifying the overall architecture of industrial gearboxes while enhancing the reliability of the entire drive system.
How does the self-balancing mechanism work in a double helical gear?
The technical superiority of this gear type lies in its geometry. When a helical gear meshes, the angled teeth create a force that pushes the gear along its axis. In high-power applications, this axial thrust can cause premature wear or failure of the housing and bearings. The design of a double helical gear solves this by mirroring the tooth profile. Because the helix angles are identical but reversed, the lateral forces reach a state of equilibrium.
YIZHI MACHINERY utilizes high-grade steel and advanced alloys to ensure that this geometric precision translates into physical durability. The result is a gear that combines the smooth, quiet meshing characteristics of helical designs with the stability of spur gears, making it an ideal choice for medium-to-heavy load working conditions where axial movement must be strictly prohibited.
What factors contribute to the high efficiency and noise reduction of these gears?
Transmission efficiency is a core metric for industrial performance, and the double helical gear application typically achieves a remarkable efficiency rating. This high performance is attributed to the continuous and progressive meshing of the teeth. Rather than the sudden impact found in spur gears, the teeth of a double helical gear engage gradually, ensuring a constant transfer of torque with minimal vibration.
This progressive engagement significantly reduces the operating noise of the machinery. In high-speed environments, such as industrial compressors or power tool transmissions, the reduction in acoustic output and mechanical vibration extends the service life of the entire system. The increased meshing overlap coefficient also means more teeth are sharing the load at any given time, which enhances the wear and fatigue resistance of the component.
Where is the double helical gear application most effective?

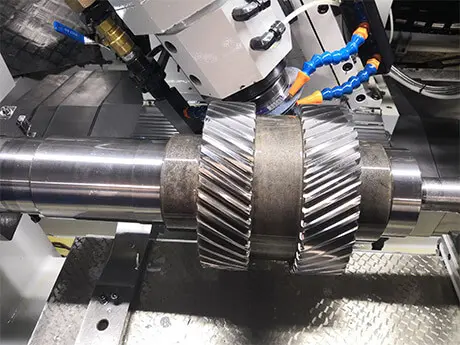

Strategic implementation of these components allows industries to push the limits of their mechanical capabilities. From the depths of mining operations to the propulsion of massive ocean-going vessels, the double helical gear is a cornerstone of modern heavy industry.
How do these gears empower marine propulsion and high-power turbines?
In the maritime sector, main engines and propulsion units must handle extreme levels of torque while maintaining absolute reliability far from shore. The double helical gear application is prevalent in these systems because it can manage the high loads of marine main engines without requiring massive thrust-handling hardware. For high-power steam turbines, where rotational speeds are extreme, the smoothness of this gear design prevents catastrophic failures caused by mechanical resonance.
Why are industrial compressors dependent on this specific gear type?
Air compression equipment operates under constant high-frequency cycles where stability is paramount. YIZHI MACHINERY provides specialized gear solutions for the industrial sector, specifically tailored for air compression applications. The use of a double helical gear ensures that the transmission remains efficient and stable over long periods of continuous operation, reducing maintenance costs and preventing unexpected downtime in critical manufacturing facilities.
What role does it play in heavy-duty mining and construction machinery?
Miners’ conditions may be the toughest for any piece of machinery, considering the load capacity and harshness of the environment in which miners operate. In respect of the reducers and machines used by miners, YIZHI MACHINERY uses high-quality materials and precise manufacturing methods to make strong gears that can survive these conditions. It is no wonder that the double helix design is highly useful in handling such loads because of its non-corrosiveness.
How to select a reliable double helical gear manufacturer for precision projects?
Choosing a double helical gear producer is an important step that determines the future performance of the manufacturing facility. Technical competence, high-quality materials, and inspection standards are what make a reliable partner.
How does YIZHI MACHINERY ensure quality through rigorous inspection?
Quality assurance is integrated into every step of the production process. A professional double helical gear manufacturer must implement a dual quality control system that includes both routine shop floor inspections and professional laboratory analysis. At YIZHI MACHINERY, the inspection protocols cover:
- Dimensional accuracy and tooth profile geometry.
- Pitch and tooth trace precision to ensure perfect meshing.
- Surface roughness and tooth contact accuracy.
- Material hardness verification post-heat treatment.
These rigorous checks ensure that only products meeting 100% of the customer’s specifications are delivered.
What steps ensure success in OEM gear customization?
The transition from a technical drawing to a high-performance mechanical component requires a standardized and transparent process.
How does the standardized OEM process bridge design and delivery?
YIZHI MACHINERY follows a five-step standardized OEM customization process to ensure closed-loop delivery.
- Demand Communication: Clarifying gear types, parameters, and application scenarios.
- Design and Drawing: The professional design team formulates detailed solutions based on client requirements.
- Production and Processing: Utilizing advanced CNC gear grinding and hobbing equipment.
- Quality Inspection: Comprehensive verification of core parameters including dimensions and hardness.
- Packaging and Shipping: Using professional anti-damage materials to ensure perfect delivery.
What real-world successes prove the reliability of YIZHI MACHINERY?
The expertise of YIZHI MACHINERY is validated by its long-term partnerships with global leaders. For instance, Viktor Tsurkan, a renowned machinery manufacturer, relies on YIZHI MACHINERY for customized gear solutions that meet extremely high precision requirements. Similarly, TechDrive Solutions has sourced precision gears for over three years, reporting that the components demonstrate exceptional durability even under extreme operating conditions. Another partner, Precision Motion Systems, has seen significantly improved system reliability and reduced downtime after integrating high-performance gears from YIZHI MACHINERY into its automation systems.
Conclusion
The double helical gear remains an unrivaled choice for industrial drive systems requiring high load capacity, smooth transmission, and self-balancing axial forces. By eliminating the need for additional thrust bearings and providing high transmission efficiency, these gears optimize mechanical performance across various sectors, including mining, maritime, and industrial compression. Successful implementation, however, depends on partnering with a specialized double helical gear manufacturer like YIZHI MACHINERY, which combines micron-level precision, advanced heat treatment, and a proven OEM process to deliver reliable solutions for the world’s most demanding applications.
Please contact us for professional, custom precision gear solutions from YIZHI MACHINERY.
FAQ
Q: How does a double helical gear application improve the efficiency of industrial gearboxes?
A: By utilizing a coaxial design that naturally offsets axial thrust, the double helical gear application reduces energy loss and mechanical wear. This leads to a transmission efficiency of up to 99%, which is significantly higher than that of many traditional gear types.
Q: Can YIZHI MACHINERY achieve high-precision standards for complex gear shafts?
A: Yes, YIZHI MACHINERY utilizes CNC grinding and turning equipment to achieve micron-level tolerances. The company can reach Grade 5 to 8 precision according to the ISO 1328 standard, ensuring high accuracy for integrated gear shafts and other complex transmission components.
Q: Why should I choose YIZHI MACHINERY as my long-term double helical gear manufacturer?
A: YIZHI MACHINERY offers a full-dimensional customization service, a 24-hour response mechanism, and a proven track record with global partners like TechDrive Solutions and Precision Motion Systems. The focus on solution-based sales ensures that every double helical gear manufacturer requirement is met with precision and reliability.
