The gear shaft is a common solution for high-torque transmission in applications where power needs to be transferred, space is limited, and precise alignment is required. We design our gear shafts to include the shaft, gear teeth, spline or key interface, material, heat treatment, and inspection method to match the actual working conditions. Our customized transmission and spline gear shafts can be used for various types of machines that require high torque, limited space for installation, and consistent assembly.
Why Gear Shafts Matter in High-Torque Transmission
Integrated Gear-and-Shaft Construction
A gear shaft is a single part consisting of a gear and a shaft. This form of transmission element is especially useful when a gearbox is of small dimensions, or when the drive must transfer torque in a particularly precise and stiff manner. The separate mounting of the gear to the shaft is thereby dispensed with. In addition, the assembly is made easier, and there are fewer parts that must be aligned.
Torque Capacity and Space Efficiency
In high-torque applications, great loads are imposed on the tooth flanks, on shaft shoulders, on splines and on bearing seats. This means that a gear shaft has to be evaluated as a whole, as one single part, and not as a single gear or a single shaft. The diameter, the tooth geometry, the length of the support, the surface quality, and the heat treatment all have an influence on the load-bearing capacity and the wear resistance of the part.
Gear Input Shafts, Output Shafts, and Pinion Shafts
Matching the Shaft to the Transmission Position
An input gear shaft is used to transmit power from a motor or prime mover, whereas an output gear shaft transmits converted speed and torque to a machine. Since a pinion shaft generally consists of a smaller gear that runs between the teeth of a larger gear or ring, the tooth accuracy and alignment of the pinion shaft have a direct bearing on contact. Defining the shaft position early in the design process allows designers to establish suitable interfaces and associated inspection requirements.
When a Spline Gear Shaft Is the Better Choice

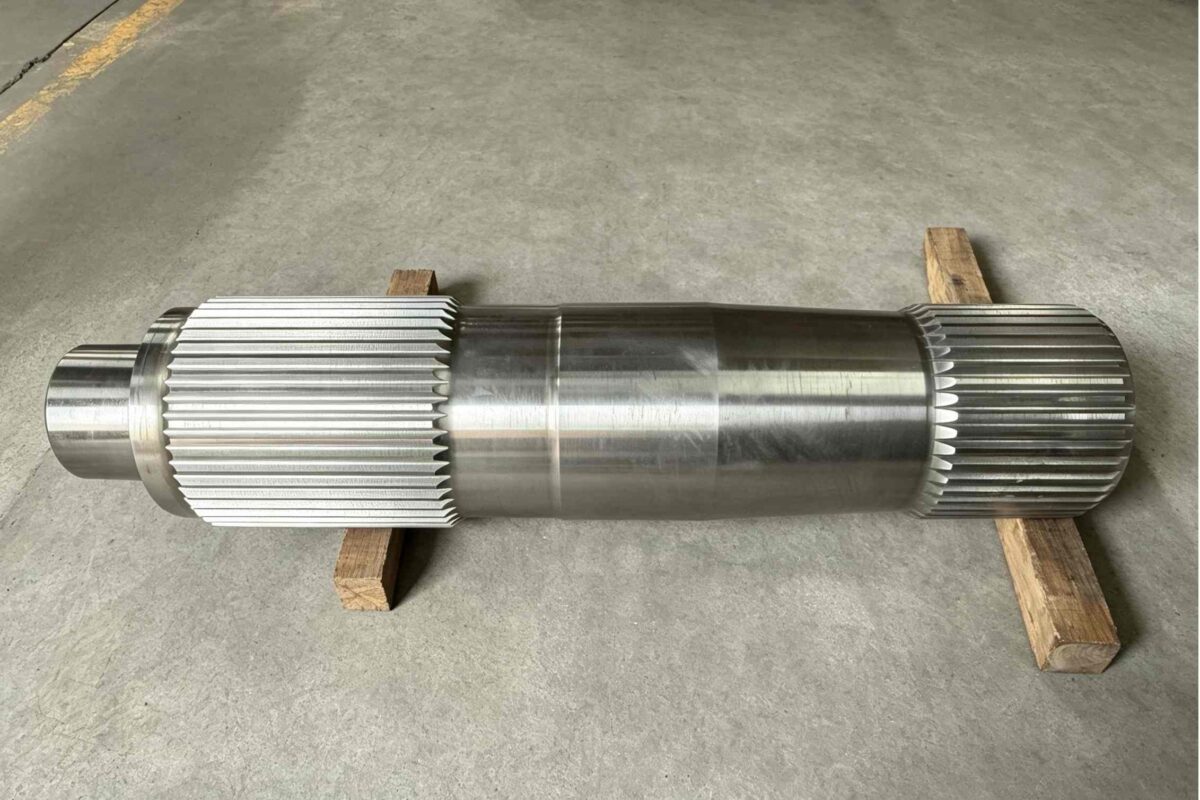

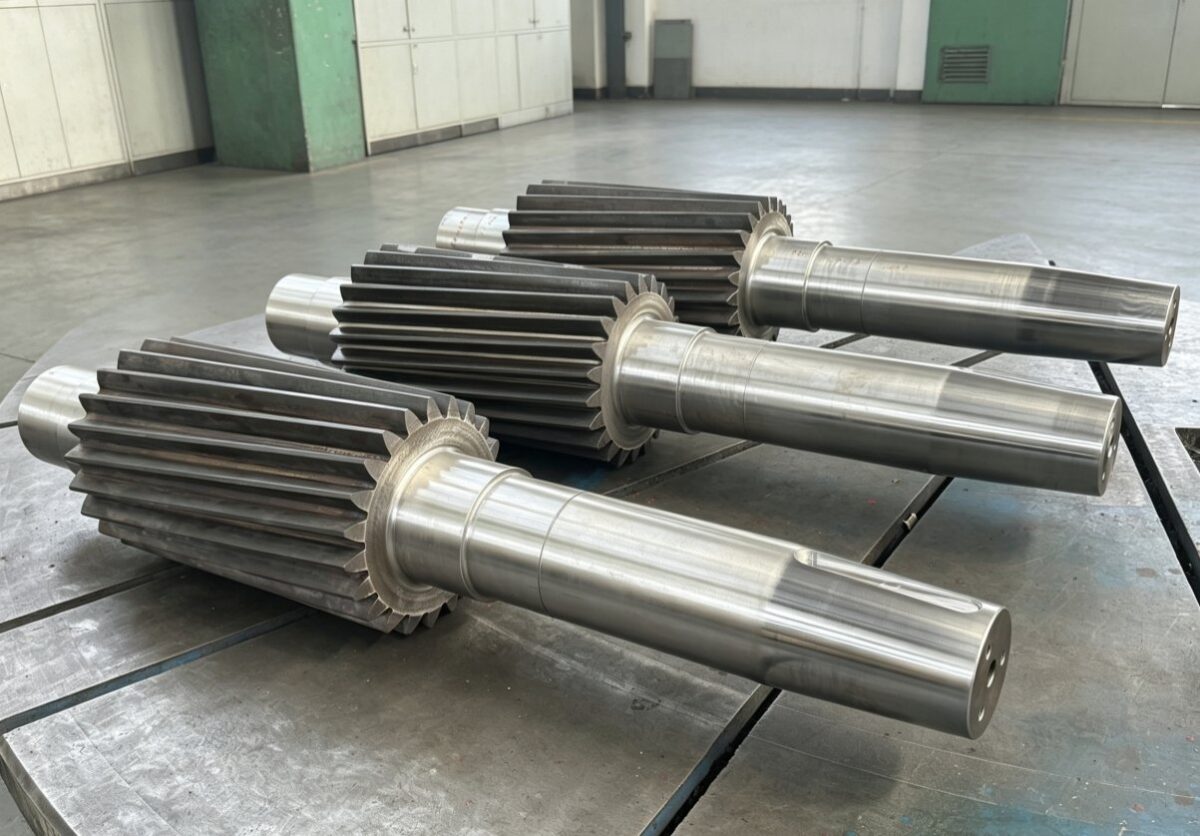

Spline shafts are used to transmit torque via multiple teeth encircling the shaft axis instead of by means of a single key. The interface thus created is well-suited for repeated assembly as well as for axial movement. It can also be used for precise and controlled rotational movement, provided the required spline form, fit, and lubrication are realized on the machine. The relevant spline standard and functional fit must be clearly indicated on the drawing before production is started.
Materials and Heat Treatment for Gear Shafts
Common Steel Options
YIZHI MACHINERY introduces some of the most common steel code families that are used in gear production, such as C45E4, 40Cr, 20CrMo, 42CrMo4, 20CrMnTi, 20CrNiMo, 17CrNiMo6. The most suitable grade depends on several factors, including core toughness and surface hardness, wear resistance, shaft diameter, and required heat treatment. Material should be selected based on the part drawing and operational conditions as opposed to picking from a code list.
Hardening, Tempering, and Surface Durability
Heat treatment alters the hardness, strength, toughness, and wear resistance of a material. Annealing or normalizing may be used for material preparation, while quenching, tempering, hardening, or case hardening can be used to produce the required surface and core properties. After heat treatment, it is necessary to check for distortion and for variation in hardness. Both of these can affect tooth contact, runout, and bearing alignment.
How Gear Shafts Are Manufactured
Hobbing, Shaping, Milling, and Grinding

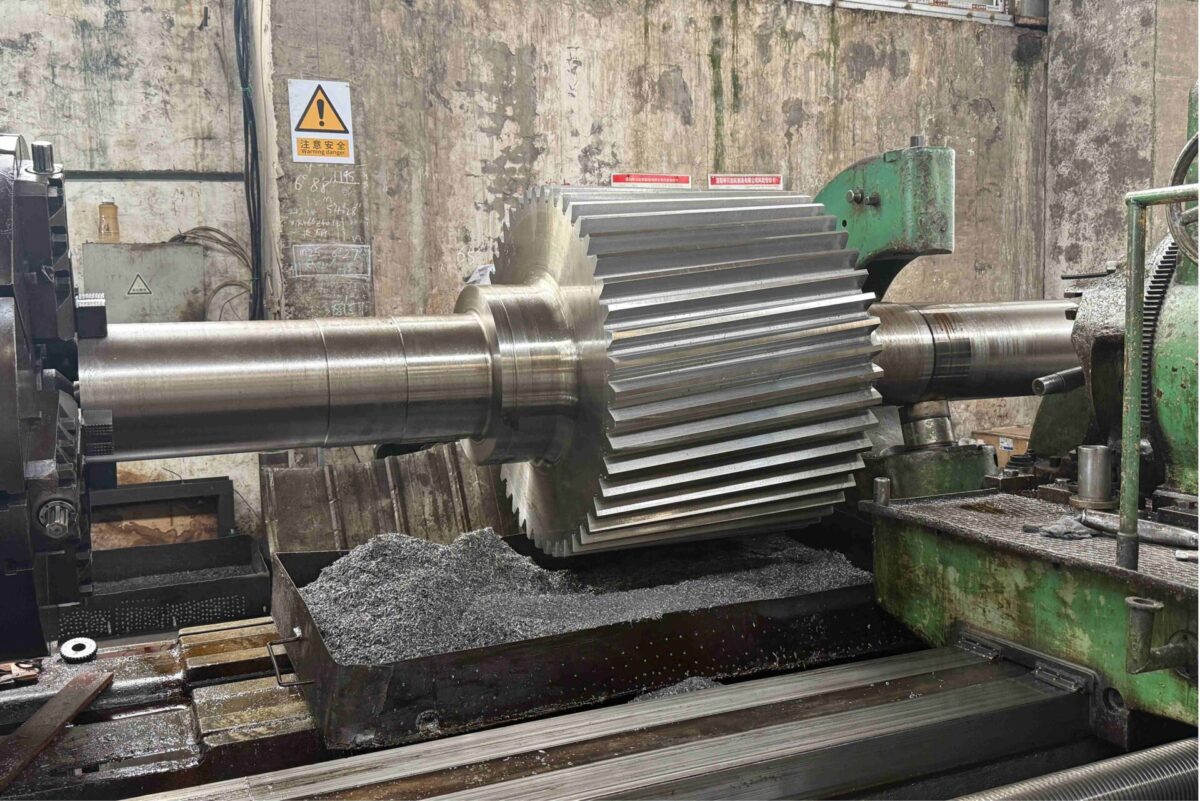

A critical manufacturing sequence is determined by the gear form, the spline design, the part size, and the finish required. While the teeth are formed by the hobbing or shaping process, smaller details and unique features are machined in milling operations. The teeth are then surface finished by grinding to provide precise tooth surface finish and dimensions. All features of the shaft, including body, teeth, splines, and key seat, are manufactured in a sequence that maintains proper relationship between features.
Spline Machining and Dimensional Control
The processes of spline hobbing, shaping, milling, and grinding have to be controlled with respect to tooth spacing, flank form, concentricity, and interface with the mating shaft or hub. Dimensions to be checked include external gear diameter, tooth thickness, shaft journals, shoulders, spline features, keyway, and bore diameter. This is the interface with your custom gear shaft manufacturer and requires correlation of machining capability with a satisfactory drawing review process.
Inspection Points That Influence Gear Shaft Reliability
Tooth Profile, Runout, and Alignment
Checking the outside diameter of a gear is not all there is to gear inspection. Also critical are tooth profile, pitch, surface roughness, runout, and alignment. YIZHI MACHINERY outlines the checks, which start with material/size inspections and continue through to inspection of tooth profile and surface, alignment tests, load tests, non-destructive tests, and documentation.
When defining a control plan for a custom part, the available gear inspection capabilities can be reviewed.
Surface Finish, Hardness, and Traceability
Surface finish and hardness have to be seen in the context of the load imposed upon the gear as well as the lubrication intended. A smooth tooth surface, which has been properly hardened, will maintain a correct and stable meshing position. However, misalignment as well as an unsuitable interface design cannot be compensated by a good tooth surface. Finally, the inspection records and traceability allow checking the production against the respective drawing and process requirements.
Choosing a Custom Gear Shaft Manufacturer
Review Drawings, Loads, and Interfaces
Before selecting a supplier, share the shaft position, torque direction, speed range, duty cycle, bearing arrangement, spline or key details, material preference, and heat-treatment requirement. A useful review should also identify datum references, critical fits, inspection points, and packaging needs. This reduces ambiguity before machining starts and keeps the final gear shaft aligned with the equipment rather than with a generic catalog assumption.
YIZHI MACHINERY is a comprehensive manufacturer for drawing-led custom gear shafts. We integrate gear processing and shaft processing with relevant application knowledge.
How YIZHI MACHINERY Supports Customization
YIZHI MACHINERY specializes in designing and manufacturing customized gear transmission components and mechanical parts. Our developed working process, including communicating with customers’ demands, making drawings according to customers’ special requirements, processing production, inspecting quality, and packaging, is very suitable for OEM teams who need custom-made gear shafts for their special gearboxes, machines’ special interfaces, or for replacing old parts.
Gear Shaft Applications in Industrial Machinery
Gear shafts are used in applications like gearboxes, gear reducers, machine tools, agricultural machines, pumps, and mining machinery, all requiring precise control of rotary motion. Transmission shafts can be chosen for direct power transmission, while spline shafts are designed for torque transmission via a defined toothed connection. When selecting shafts, consideration must be given to the actual loading, available space, speed, and maintenance requirements of the machine in question.
Conclusion
When selecting a gear shaft for a high-torque application, several factors must be considered as part of a complete system: shaft geometry, material, heat treatment, manufacturing process, shaft end surface and fit. With proper design, such a component can facilitate easy assembly, effective utilization of available space, and reliable operation under assigned operating conditions. Custom-made transmission or spline shafts can be supplied based on customers’ drawings and specific application requirements by YIZHI MACHINERY.
It’s time to discuss your next gear shaft project with YIZHI MACHINERY. Let’s translate the required interfaces into a manufacturing document, a plan.
FAQ
Q: What is the difference between a gear shaft and a separate gear-and-shaft assembly?
A: The toothed section of a gear and the shaft body are integrated into one part, a gear shaft; thus, there is no mounting interface for the gear separate from the shaft. This has advantages in assembly and enables very compact designs with rigid power transmission, but the complete part has to be replaced or remanufactured if one of the integrated features, critical to function, suffers damage.
Q: When should an engineer choose a spline gear shaft?
A: A spline gear shaft is useful when torque must pass through multiple teeth around the shaft, or when the design needs controlled rotary positioning or possible axial movement. The spline standard, tooth form, fit, lubrication, and mating component should be defined together so the interface performs as intended.
Q: Which manufacturing processes are used for gear shafts?
A: The official gear shaft process description includes gear or spline hobbing, shaping, milling, and grinding. The actual sequence depends on the tooth form, spline geometry, production volume, material, heat treatment, and required finish. Final inspection should confirm dimensions, tooth profile, surface condition, runout, and alignment.
Q: Can YIZHI MACHINERY customize a gear shaft for an existing machine?
A: Yes. YIZHI MACHINERY describes a customization process from demand communication to design and drawing, then to production processing, to quality inspection, and to packing. It is recommended that the relevant drawing, load information, shaft interfaces, material or heat treatment requirements, and the relevant application conditions be provided by the engineering team in order to match the parts to the corresponding machines.
