An internal gear is valuable when a transmission needs compact packaging, stable internal meshing, and efficient use of radial space. By placing the teeth on the inside of a cylindrical ring, the design can work with external gears or pinions in a planetary gear system, gearbox, robotic mechanism, or other compact drive.
What Is an Internal Gear

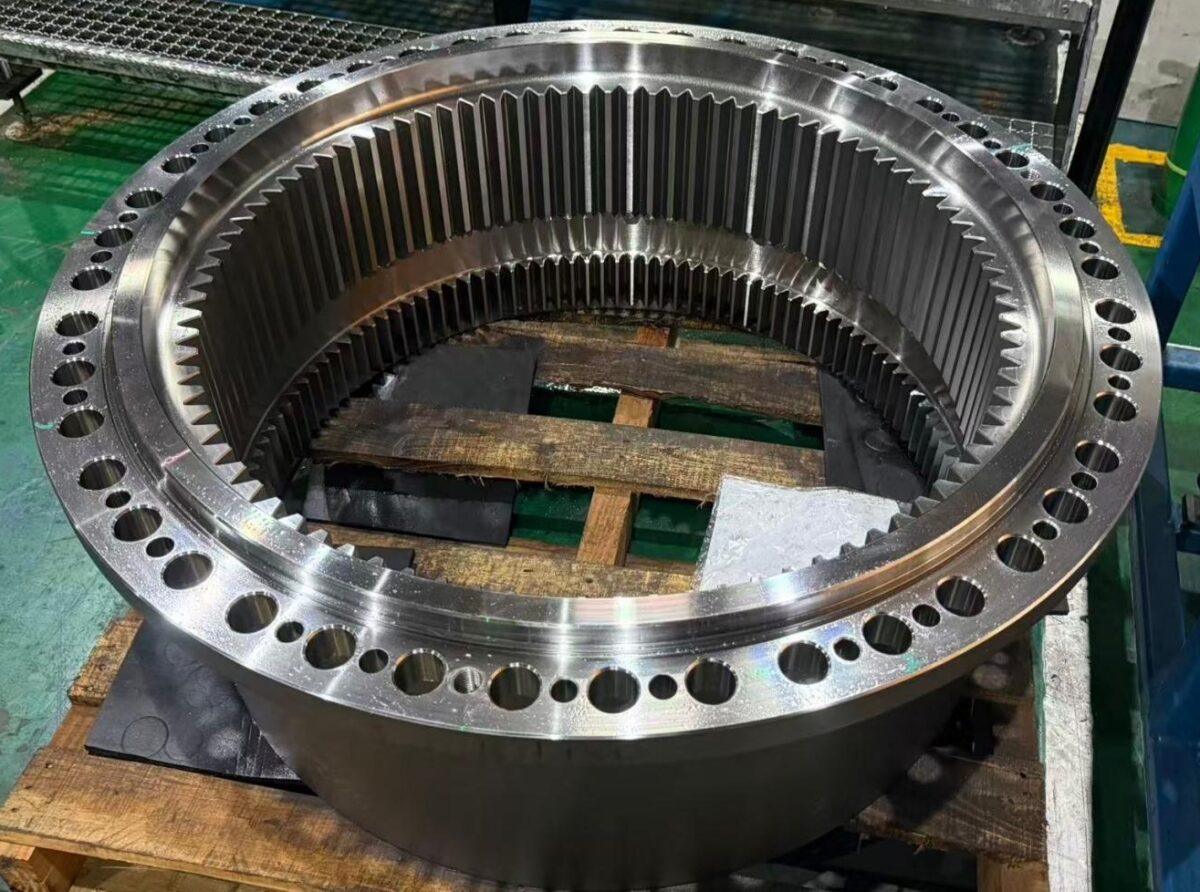

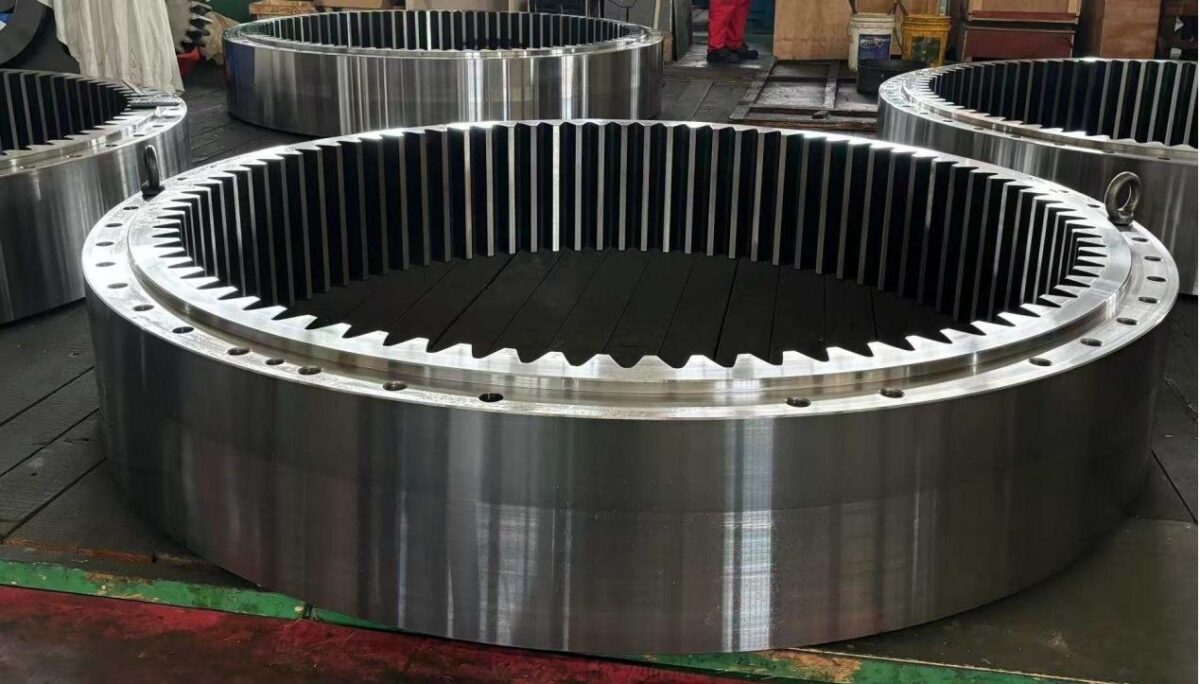

An internal gear has teeth cut on the inner surface of a cylindrical body rather than on its outside diameter. It meshes with an external gear or pinion, and the two members rotate in the same direction when the internal mesh is arranged correctly. That relationship is different from the opposite-direction rotation of two ordinary external gears.

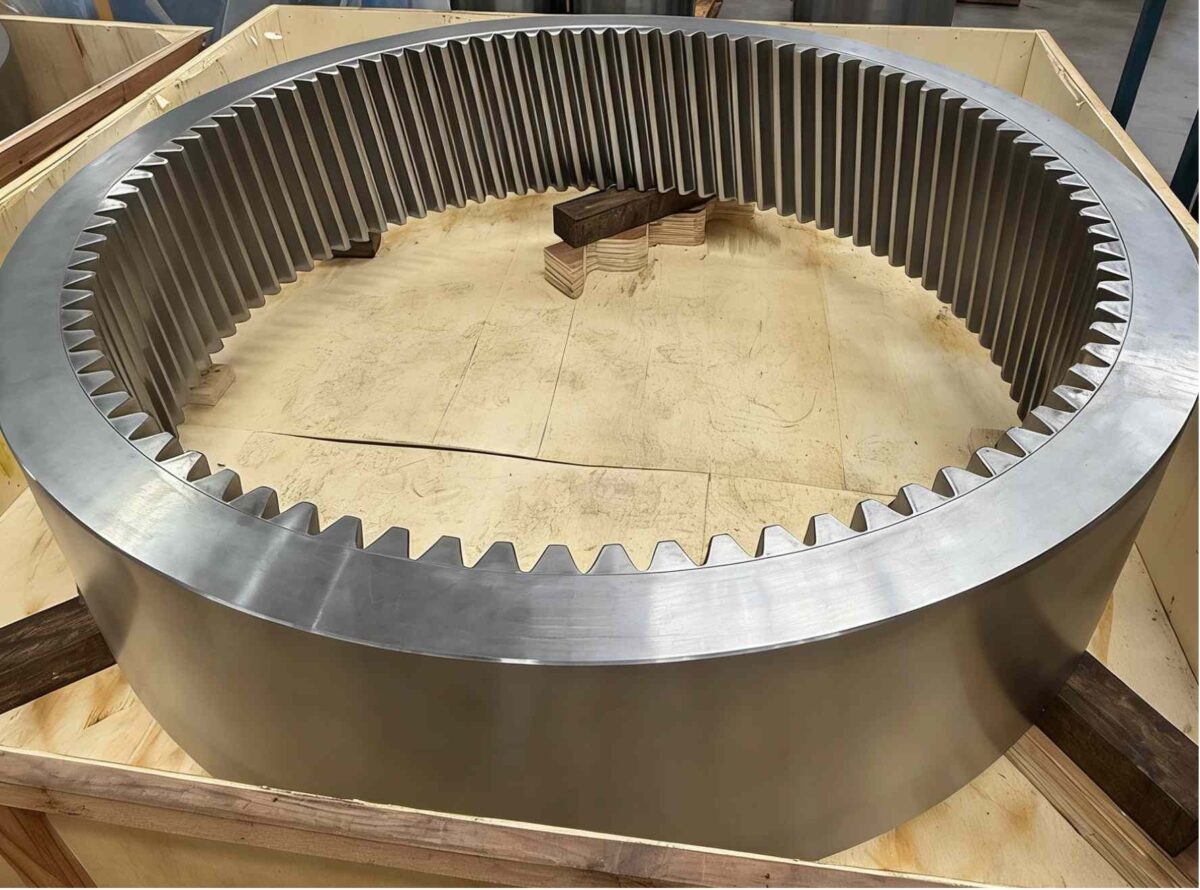

The ring-shaped form gives designers room to place other gears inside the pitch circle. In a planetary gear system, the internal ring gear can surround the planet gears while the sun gear sits near the center. This arrangement uses space efficiently and creates a compact route for transmitting torque.
For a product-level view of this geometry, see custom internal gears from YIZHI MACHINERY and evaluate the ring with the pinion, carrier, shaft, and housing as one working set.
Why Internal Gears Suit Compact Transmissions
The first advantage is packaging. An internal gear can enclose the working gears instead of placing every gear outside a separate center distance, reducing unused space around the transmission. That is useful when the housing must stay short or several gears share one axis.
The second advantage is the opportunity for stable tooth engagement. Internal gear systems can carry substantial loads when the gear pair, tooth profile, material, heat treatment, and alignment are matched. The final result still depends on design details, but the geometry supports compact torque transfer.
Space Efficiency Is a System Decision
A compact internal gear does not automatically make a compact machine. The carrier, bearings, planet pins, seals, lubrication paths, and housing walls all need room. Designers should check the full assembly envelope before selecting the ring gear, especially when service access or heat dissipation may limit how tightly the parts can be packaged.
The relationship between tooth counts also matters. The ring gear must be compatible with the sun and planet gears, and the working clearances must leave enough room for assembly without allowing excessive backlash. These checks are part of the planetary gear system, not optional calculations after the ring has been specified.
Internal Gear Applications in Planetary Systems
Planetary gears offer one of the most obvious examples of where an internal gear comes into use. The ring gear is on the outside of the planet gears, while the sun gear and the carrier control the speed, torque, and reaction distribution, thus altering the operating conditions according to which of the components is held stationary or driven.
However, the same principles could be applied in gearboxes and mechanical transmissions, in robotics and automation, winches, feed drives of machine tools, and lifting mechanisms, in which the ring gear is useful since it allows the creation of a coaxial layout, while the center of the construction remains free for the other parts of the transmission.
A practical analysis should take into account the speed, torque, reversals, shocks, duty cycle, lubrication, temperature, and access. Smooth operation and backlash control could be considered in the case of robotics, while a hoisting gearbox will pay more attention to the load, wear resistance, and inspection access.
Spur Internal Gear vs Helical Internal Gear
A spur internal gear uses straight teeth and is commonly associated with parallel-shaft arrangements. Its geometry is direct and easy to describe, which can be useful when the transmission needs predictable meshing and the operating speed does not require the smoother engagement of angled teeth.
A helical internal gear uses angled teeth. The gradual engagement can support smoother and quieter operation, but the helix also introduces axial force and adds another design relationship for the bearings, shafts, and housing to manage. The choice should follow speed, noise limits, load direction, available thrust support, and assembly requirements.
Keep Interference and Clearance Under Control
Internal gear geometry needs careful attention to interference near the tooth tips and roots. The ring, pinion, and planet gears must have compatible tooth forms and clearances, while the bore and surrounding wall must remain strong enough for the working load. A ring that looks robust can still perform poorly if the mesh is crowded or the contact shifts to one edge.
Backlash also needs a practical target. Too little clearance can make the system bind as temperature or alignment changes, while too much clearance can increase noise, impact, and positioning error. The right value depends on the gear form and application, so it should be defined with the complete transmission rather than copied from a generic assumption.
Internal Gear Manufacturing Process
Internal gears are more demanding to produce than many external gears because the cutting tool must work inside the ring. Gear shaping uses a reciprocating cutter to form the teeth and can suit different sizes and tooth profiles. Broaching can remove material efficiently and produce accurate internal features when the tooling and volume justify it.
Gear grinding can refine the tooth profile and surface finish after earlier cutting operations. Bore finishing, keyway machining, cylindrical grinding, honing, heat treatment, and CNC work may also be needed depending on the ring design. The manufacturing route should be chosen around the tooth profile, bore, wall thickness, material, and required inspection points.
YIZHI MACHINERY describes CNC gear hobbing and shaping for internal gears, together with broaching and gear grinding. Its general gear process also includes heat treatment and checks for dimensions, tooth shape, tooth pitch, surface roughness, and tooth contact accuracy. See the YIZHI MACHINERY products catalog for the broader related component range.
Inspection Beyond the Tooth Count
Counting teeth is only one part of internal gear quality. The bore, runout, face relationship, tooth profile, pitch, surface finish, hardness, and contact pattern all affect how the ring behaves inside the gearbox. If one reference surface is out of position, the planet gears may load unevenly even when the tooth count is correct.
For that reason, inspection should follow the assembly references on the drawing. The ring gear, carrier, pinion, and shaft should share a clear datum strategy, and the finished parts should be checked against the way they will actually be installed. This is where manufacturing accuracy becomes useful for machine behavior.
Choosing YIZHI MACHINERY for Internal Gear Work
YIZHI MACHINERY is a practical option when an internal gear must be developed around a specific gearbox, planetary gear system, or mechanical drive. The product range includes internal spur gears, internal helical gears, planetary-related gear components, gear shafts, bevel gears, worm gear sets, and precision-machined parts.
The most useful starting information includes the ring gear dimensions, tooth form, tooth count, mating gears, speed, torque, duty cycle, material, heat-treatment needs, and inspection priorities. That information allows the internal gear to be considered as part of the transmission instead of as a ring that is dimensioned in isolation.
Conclusion
An internal gear earns its place when a transmission needs coaxial packaging, stable internal meshing, and efficient use of space. It is especially important in planetary gear systems, but its value also extends to gearboxes, robotics, mechanical drives, winches, and other compact equipment. The best result comes from matching tooth geometry, clearance, material, machining, heat treatment, and inspection to the complete assembly.
For a custom internal gear solution built around your application, visit YIZHI MACHINERY and connect the ring gear with the rest of the transmission design.
FAQ
Q: What is the main difference between an internal gear and an external gear?
A: An internal gear has teeth on the inside surface of a ring, while an external gear has teeth on its outside surface. An internal gear meshes with an external pinion and normally rotates in the same direction as that pinion. The internal arrangement also supports compact, coaxial transmission layouts.
Q: Why are internal gears used in planetary gear systems?
A: The ring-shaped internal gear can surround the planet gears while the sun gear remains near the center. This allows several gears to share one axis and makes efficient use of radial space. The ring gear also helps define the speed and torque relationship between the sun, planets, carrier, and fixed or driven member.
Q: What is the difference between a spur internal gear and a helical internal gear?
A: A spur internal gear has straight teeth and a direct meshing pattern, while a helical internal gear has angled teeth that engage more gradually. Helical teeth may support smoother and quieter running, but they also create axial force that the bearings and housing must accommodate. The application decides which tradeoff is acceptable.
Q: Can YIZHI MACHINERY produce custom internal gears?
A: YIZHI MACHINERY describes customized internal gear production using CNC gear hobbing and shaping, with broaching and gear grinding available for related manufacturing needs. The design discussion can include dimensions, tooth form, mating gears, material, heat treatment, precision, and inspection requirements for the intended gearbox or planetary system.
